Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability 3
Delivery
Price development

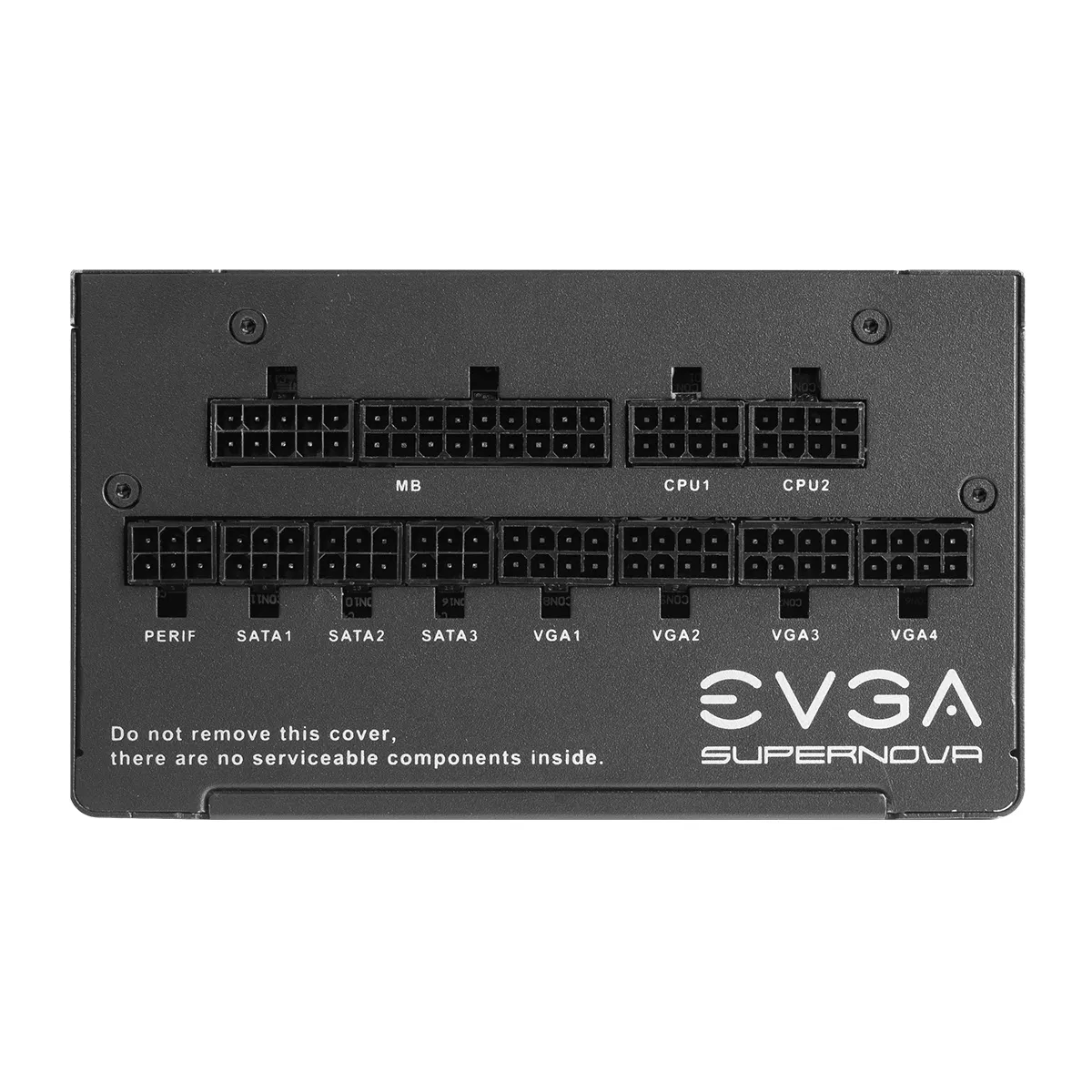

| Ports & interfaces | |
| ATX Power connector (24-pin) |  |
| Floppy disk drive connector | |
| PCI Express connector | |
| Motherboard power connector | 24-pin ATX |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 9 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 6 |
| Cabling type | Modular |
| Motherboard power cable length | 60 cm |
| SATA power cable length | 550,650,750 mm |
| Peripheral (Molex) power cable length | 550,650,750,850 mm |
| PCI Express power cable length | 70 cm |
| Floppy disk drive cable length | 10 cm |
| Weight & dimensions | |
| Weight | 3.17 kg |
| Height | 86 mm |
| Width | 150 mm |
| Depth | 140 mm |
| Energy management | |
| Input current | 10 - 5 A |
| Nominal power | 750 W |
| Efficiency | 91% |
| Power protection features | Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage |

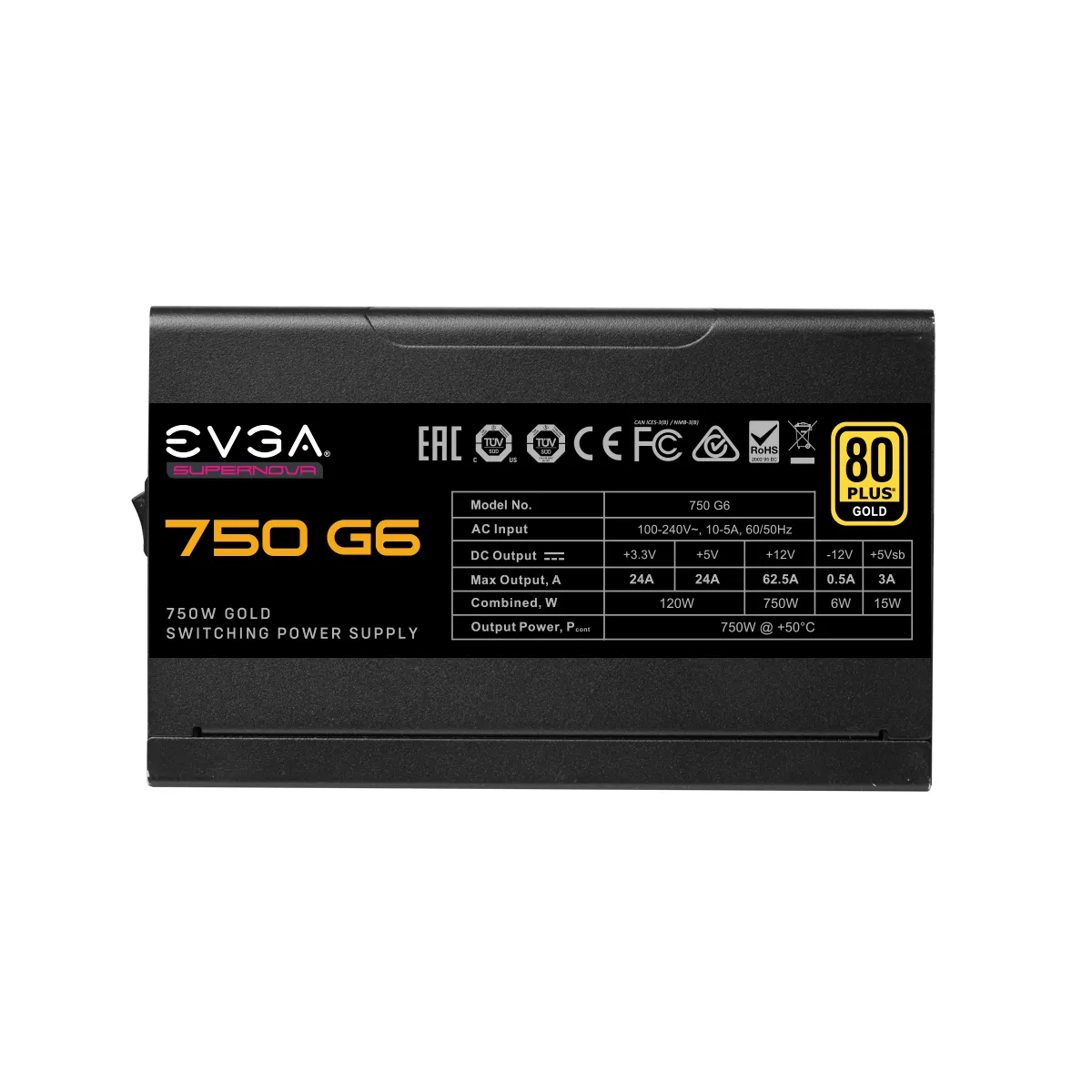

| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 24 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 750 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Certificates | |
| 80 PLUS certification | 80 PLUS Gold |
| Packaging content | |

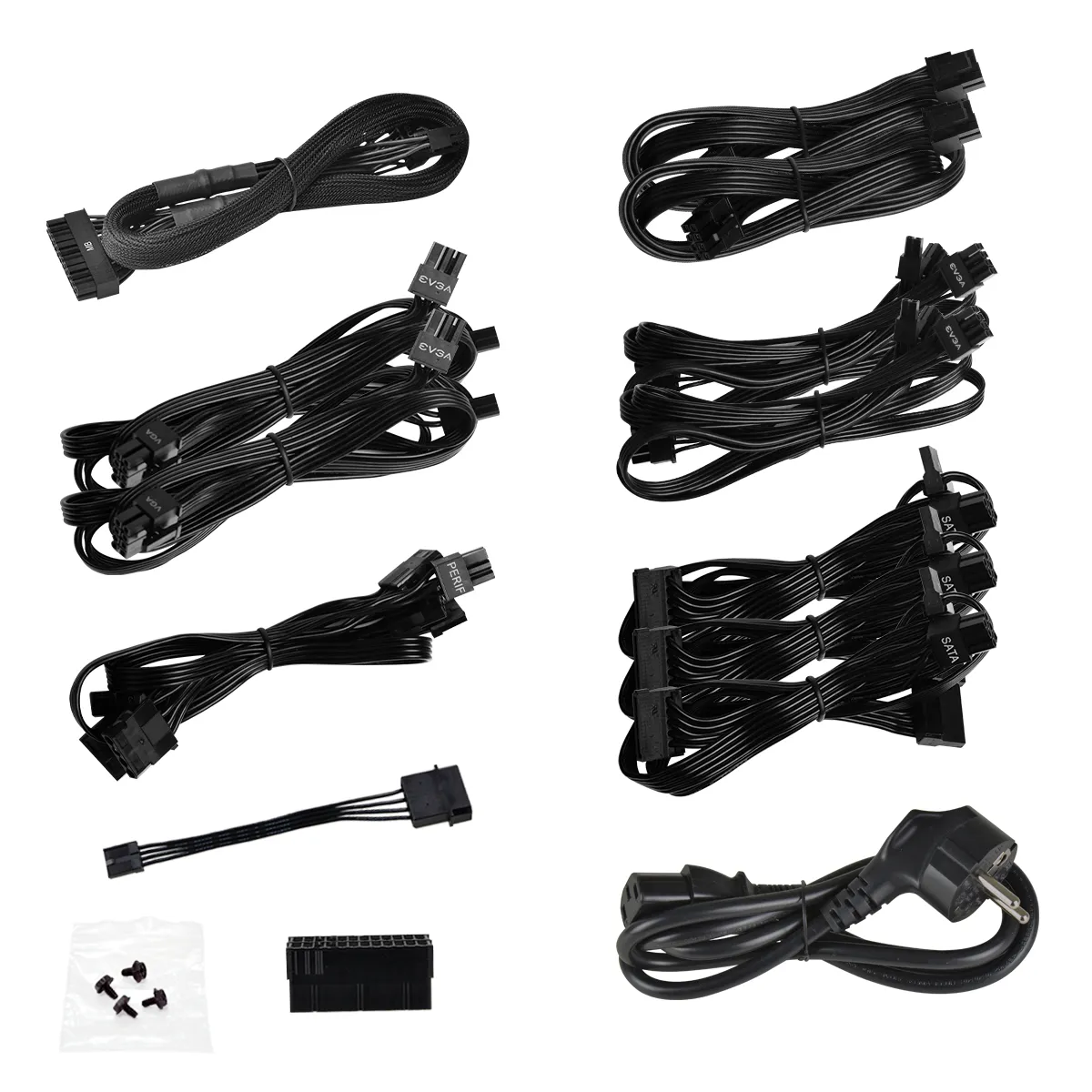

| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| On/off switch | |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Fan location | Top |
| Performance | |
| Mean time between failures (MTBF) | 100000 h |
| Purpose | PC |
| Bearing technology | FDB |
| Silent mode | |
| EAN | 4250812439321 |
| Warranty | 1 year |

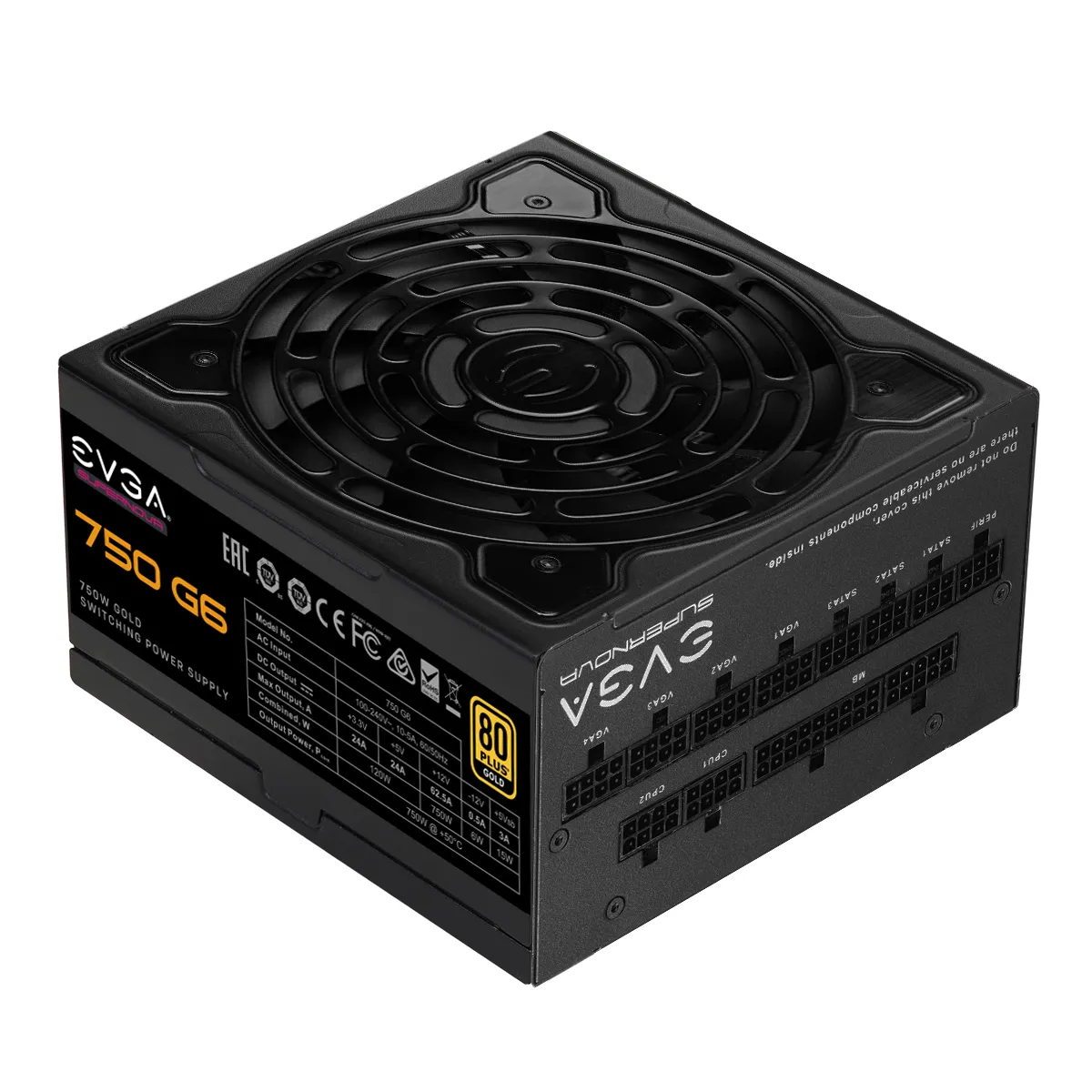

The EVGA SuperNOVA G6 power supplies feature a new platform design, using new materials and better layout placement to achieve greater performance with extremely low ripple and noise in an even smaller chassis.
Next Gen Platform
With a full-bridge, LLC Resonant Rectification, and DC-DC design, the SuperNOVA G6 provides rock-solid stability, relentless efficiency, and extremely tight voltage regulation.
Hardware + Firmware OPP
Hardware OPP is designed to trip at 135% max wattage as a last resort to protect the system, but the SuperNOVA G6 also features firmware OPP to anticipate harmful load behavior 5-10% sooner by shutting off the power supply when over-power conditions persist longer than 1ms while avoiding an instantaneous overload trigger protection malfunction during momentary peak wattage.
Smaller Size, Bigger Performance
The improved efficiency and voltage regulation minimizes heat, allowing the SuperNOVA G6 to be EVGA’s shortest ATX Gold-certified power supply.

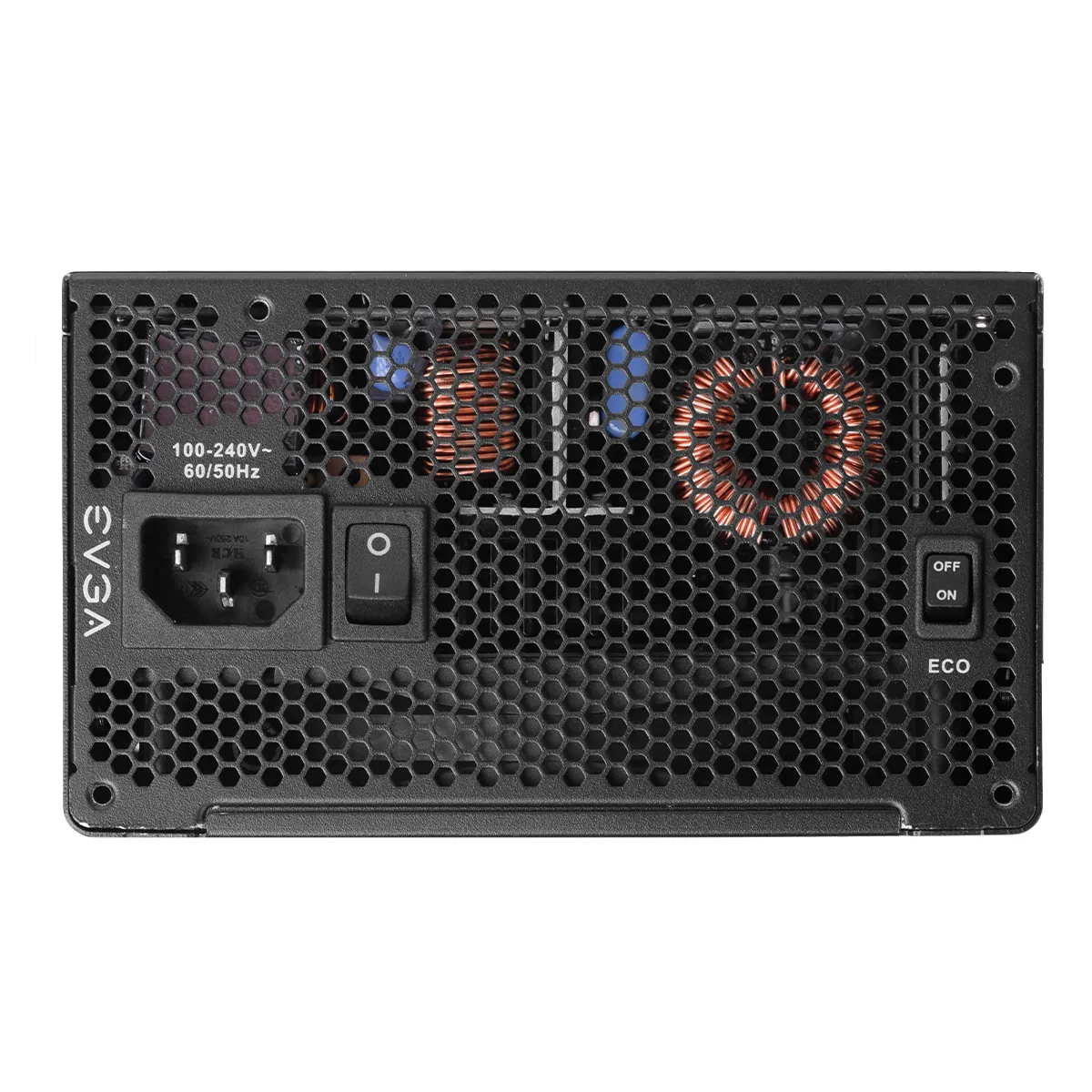

ULTRA-QUIET 135MM FDB FAN WITH EVGA ECO MODE
To reduce noise, the SuperNOVA G6 maximizes the time the power supply stays silent or quiet at low to medium loads when ECO Mode is enabled.
