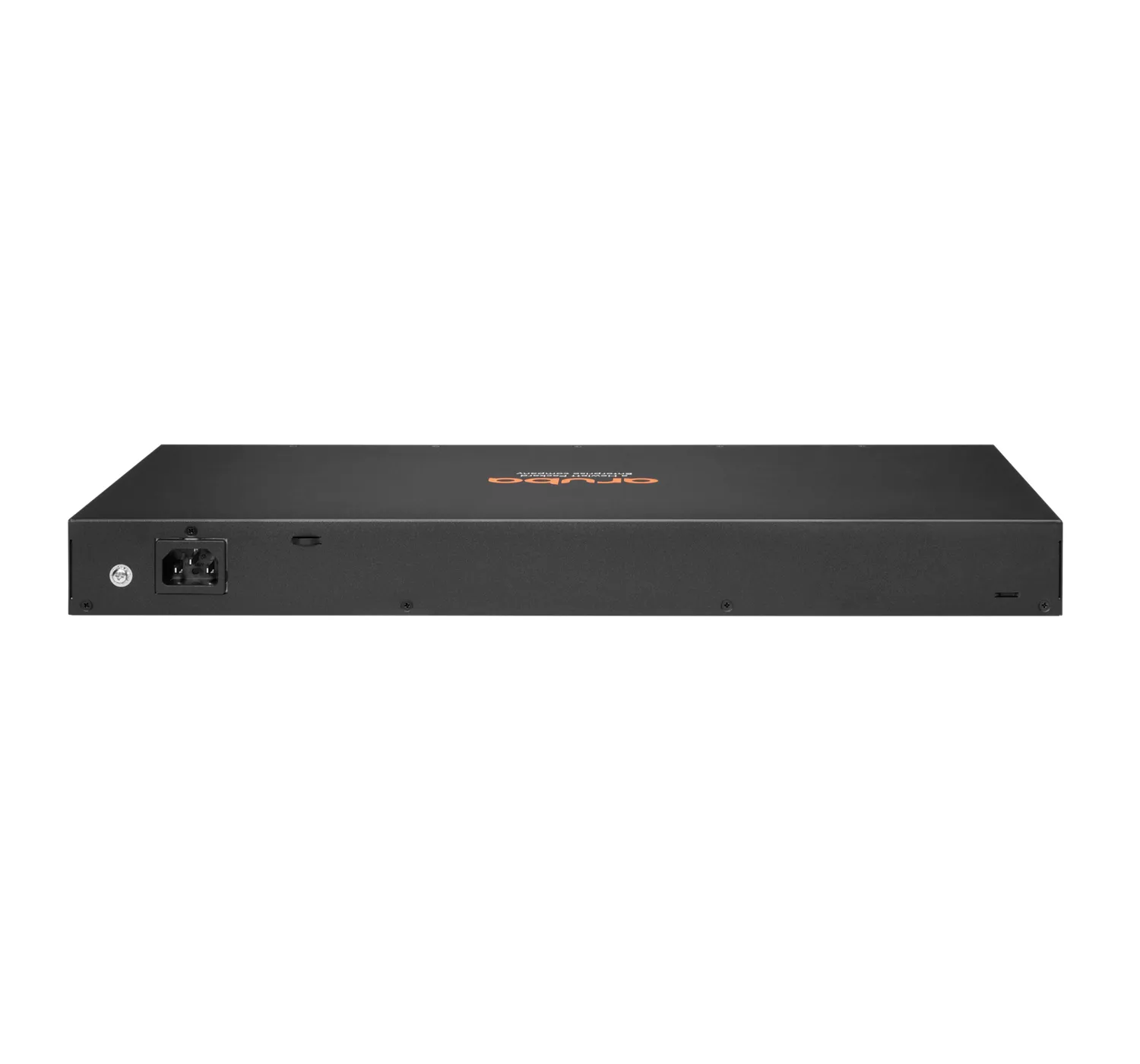

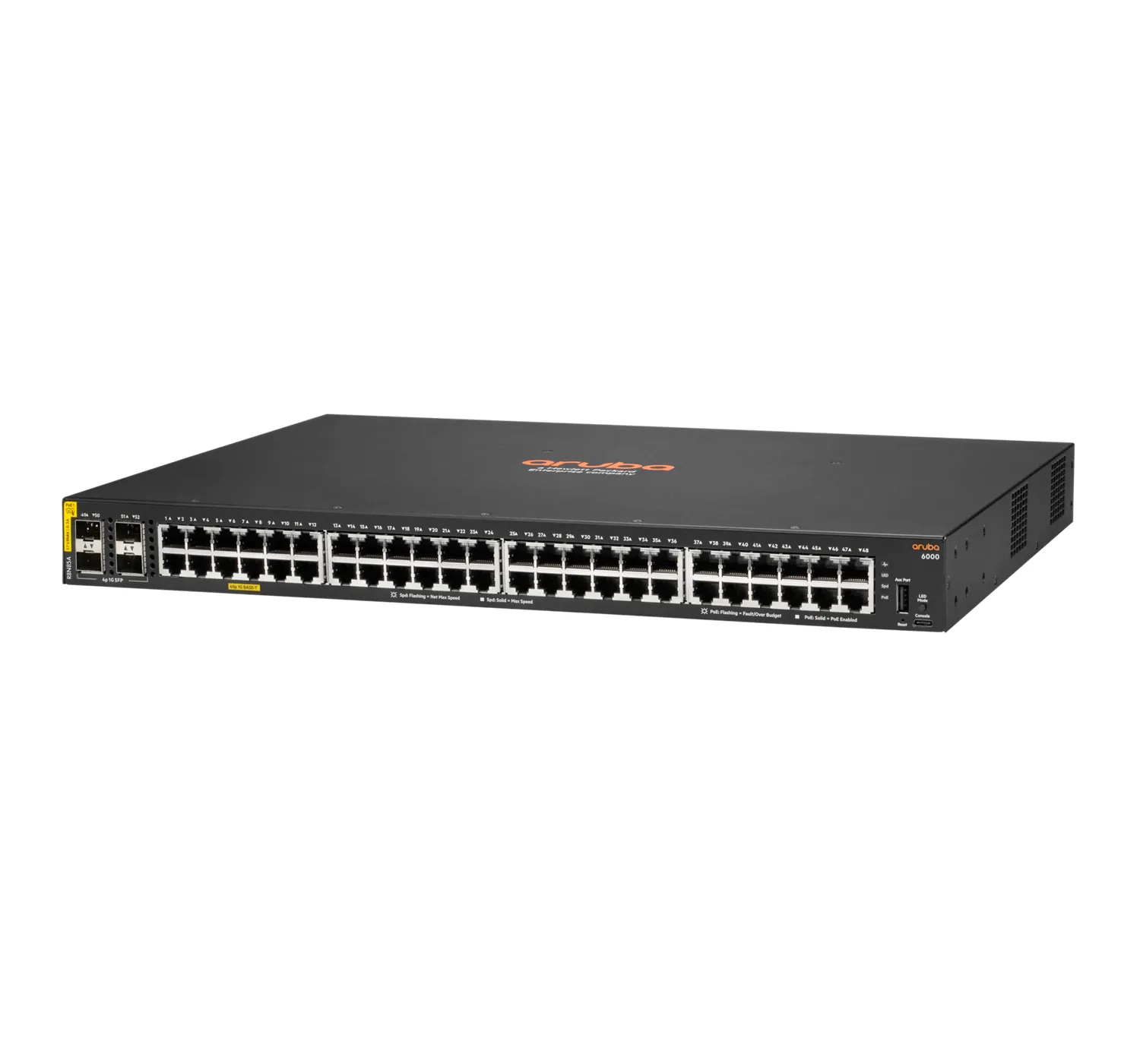

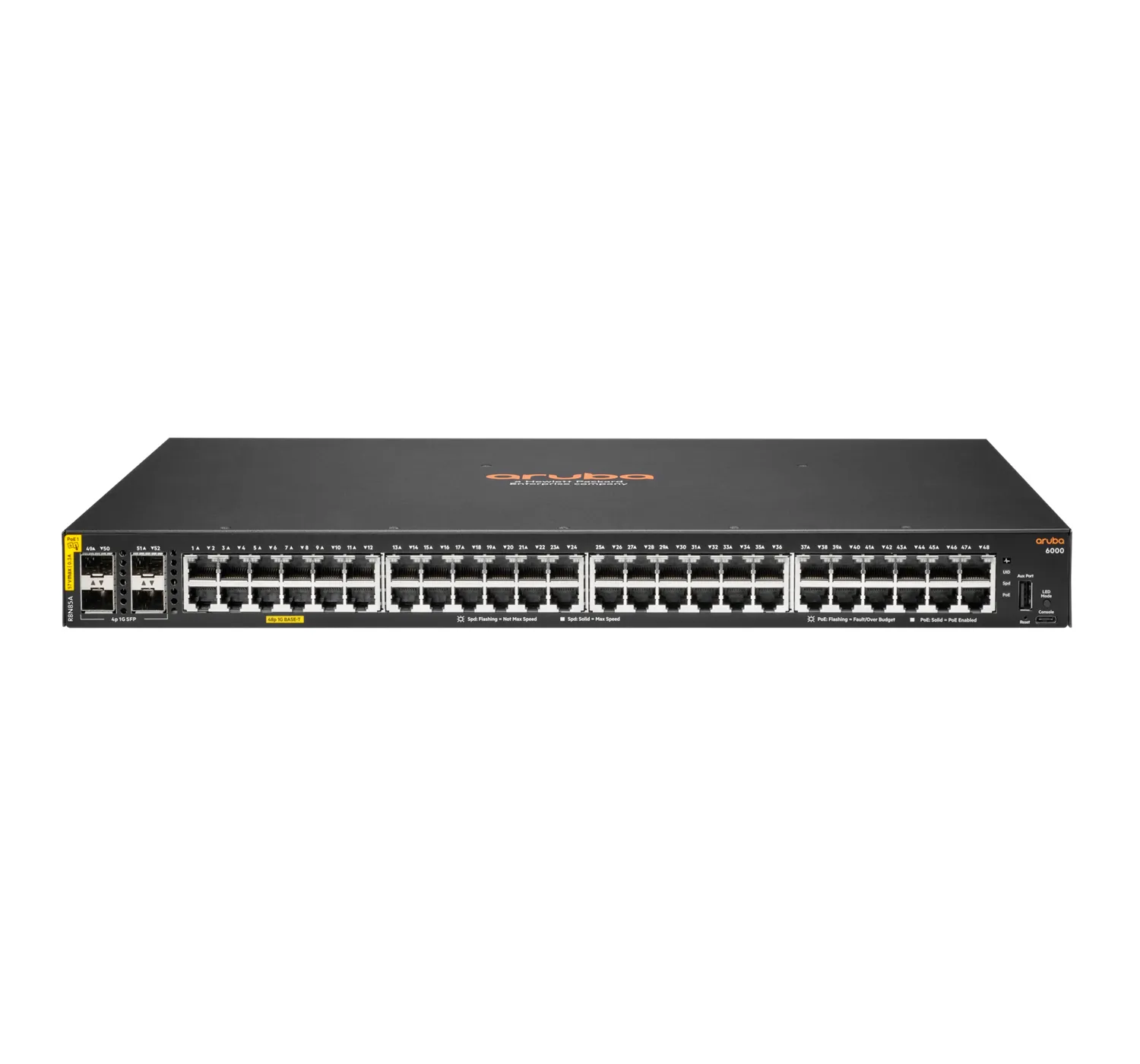

HPE Aruba 6000 48G Class4 PoE 4SFP 370W Switch - Kytkin - Hallinnoitu - 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - sivusta sivuun ilmavirtaus - räkkiin asennet
Manufacturer: HEWLETT PACKARD ENTERPRISE
ID: R8N85A#ABB
Product unavailable
This product is end of life or currently not available.
This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Ports & interfaces | |
Console port | USB |
Installed SFP+ modules quantity | 0 |
Installed SFP modules quantity | 0 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Basic switching RJ-45 Ethernet ports quantity | 48 |
SFP module slots quantity | 4 |
Weight & dimensions | |
Weight | 5 kg |
Height | 44 mm |
Width | 442 mm |
Depth | 305 mm |
Energy management | |
Power source | AC |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Power supply included | ![]() |
Operational conditions | |
Operating relative humidity (H-H) | 15 - 95% |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 45 °C |
Storage relative humidity (H-H) | 15 - 90% |
Protocols | |
IPv4 FIB entries | 256 |
IPv6 FIB entries | 128 |
IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
Networking | |
Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
Flow control support | ![]() |
Port mirroring | ![]() |
Link aggregation | ![]() |
Auto MDI/MDI-X | ![]() |
Spanning tree protocol | ![]() |
VLAN support | ![]() |
10G support | ![]() |
Data transmission | |
MAC address table | 8192 entries |
Switching capacity | 104 Gbit/s |
Jumbo frames support | ![]() |
Packet buffer memory | 12.38 MB |
Latency (1 Gbps) | 1.9 µs |
Throughput | 77.3 Mpps |
Security | |
Access Control List (ACL) | ![]() |
IGMP snooping | ![]() |
Authentication | MAC-based authentication |
DHCP features | DHCP client |
Management features | |
Switch layer | L3 |
Quality of Service (QoS) support | ![]() |
Web-based management | ![]() |
Switch type | Managed |
Cloud-managed | ![]() |
Design | |
Rack mounting | ![]() |
Form factor | 1U |
Stackable | ![]() |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | ![]() |
Total Power over Ethernet (PoE) budget | 370 W |
Performance | |
Processor frequency | 1016 MHz |
Internal memory | 8192 MB |
Processor model | ARM Cortex-A9 |
Flash memory | 16384 MB |
Memory type | DDR3-SDRAM |
Built-in processor | ![]() |
Logistics data | |
Harmonized System (HS) code | 85176990 |
Multicast features | |
Multicast support | ![]() |
EAN | 5704174943938 |
Warranty | 5 years |
Source: Icecat.biz |
The Aruba CX 6000 Switch Series is modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and security-enhanced access, the Aruba CX 6000 series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications.
The Aruba CX 6000 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This fully-managed series has convenient built-in uplinks with up to 370W of Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small work spaces. The Aruba CX 6000 series is easy to deploy and use with flexible management choices, allowing the best fit for your business and network environment.
Features
Entry Level Aruba CX Access Layer Switches
- The Aruba CX 6000 Switch Series offers Ethernet gigabit connectivity and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch offices and SMB networks.
- Using Aruba AOS-CX operating system across Aruba CX switching platforms and access-to-core-to-data center deployment domains provides a simpler, more consistent operator experience.
- Fully-managed enterprise class switches deliver Layer 2 capabilities with support static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6 support.
- Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1GbE uplinks and up to 370W of Class 4 PoE.
- Simplifies ownership with no switch software licensing or subscriptions required.
Performance and Power
- The Aruba CX 6000 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption.
- Deploy wireless access points and IoT devices with Aruba CX 6000 switch models that support up to 370W IEEE 802.3at Class 4 Power over Ethernet for up to 30W per port.
- Up to four built-in wire speed 1GbE uplinks remove bottlenecks at the access layer where users and devices connect.
Simplified Configuration and Management
- The Aruba CX 6000 Switch Series provides flexibility to manage and simplify configurations with Aruba NetEdit, easy to use Web GUI, or industry standard CLI.
- Aruba NetEdit introduces automation that allows for rapid network-wide changes, and verifies policy conformance post network updates.
- Software-defined ready with REST APIs for fine-grained programmability of network tasks.
- Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).
The Aruba CX 6000 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This fully-managed series has convenient built-in uplinks with up to 370W of Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small work spaces. The Aruba CX 6000 series is easy to deploy and use with flexible management choices, allowing the best fit for your business and network environment.
Features
Entry Level Aruba CX Access Layer Switches
- The Aruba CX 6000 Switch Series offers Ethernet gigabit connectivity and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch offices and SMB networks.
- Using Aruba AOS-CX operating system across Aruba CX switching platforms and access-to-core-to-data center deployment domains provides a simpler, more consistent operator experience.
- Fully-managed enterprise class switches deliver Layer 2 capabilities with support static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6 support.
- Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1GbE uplinks and up to 370W of Class 4 PoE.
- Simplifies ownership with no switch software licensing or subscriptions required.
Performance and Power
- The Aruba CX 6000 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption.
- Deploy wireless access points and IoT devices with Aruba CX 6000 switch models that support up to 370W IEEE 802.3at Class 4 Power over Ethernet for up to 30W per port.
- Up to four built-in wire speed 1GbE uplinks remove bottlenecks at the access layer where users and devices connect.
Simplified Configuration and Management
- The Aruba CX 6000 Switch Series provides flexibility to manage and simplify configurations with Aruba NetEdit, easy to use Web GUI, or industry standard CLI.
- Aruba NetEdit introduces automation that allows for rapid network-wide changes, and verifies policy conformance post network updates.
- Software-defined ready with REST APIs for fine-grained programmability of network tasks.
- Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).
