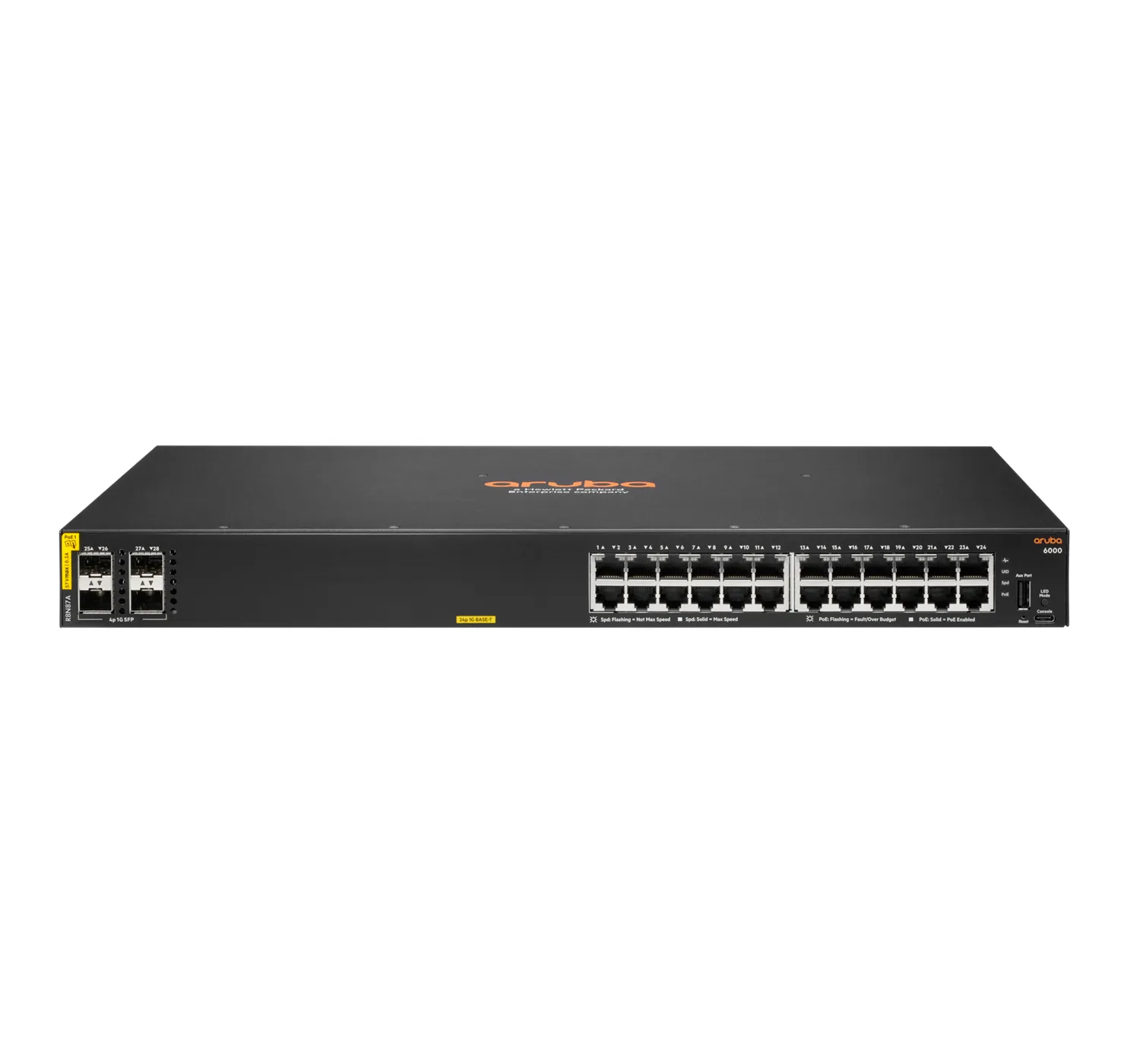

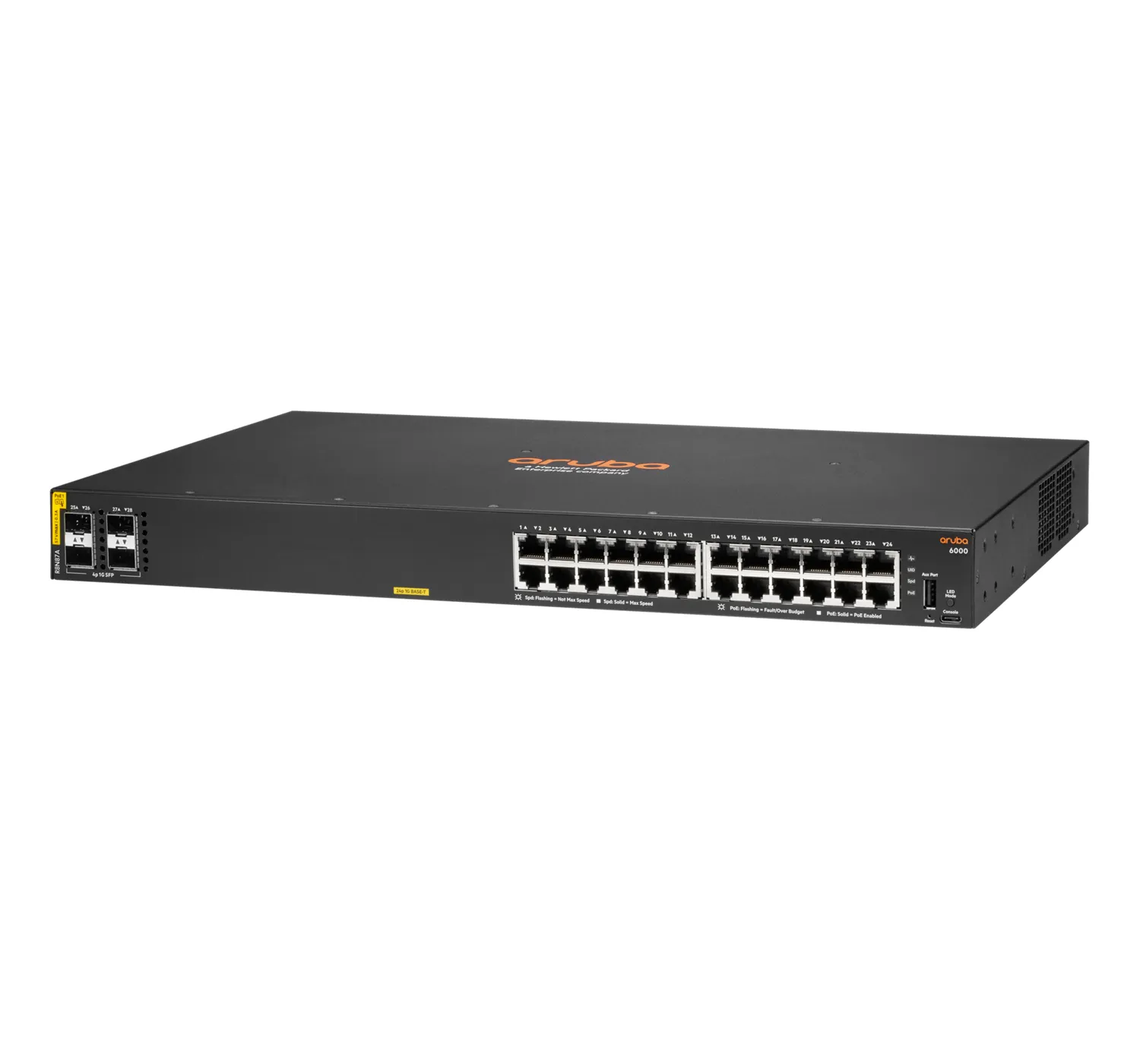

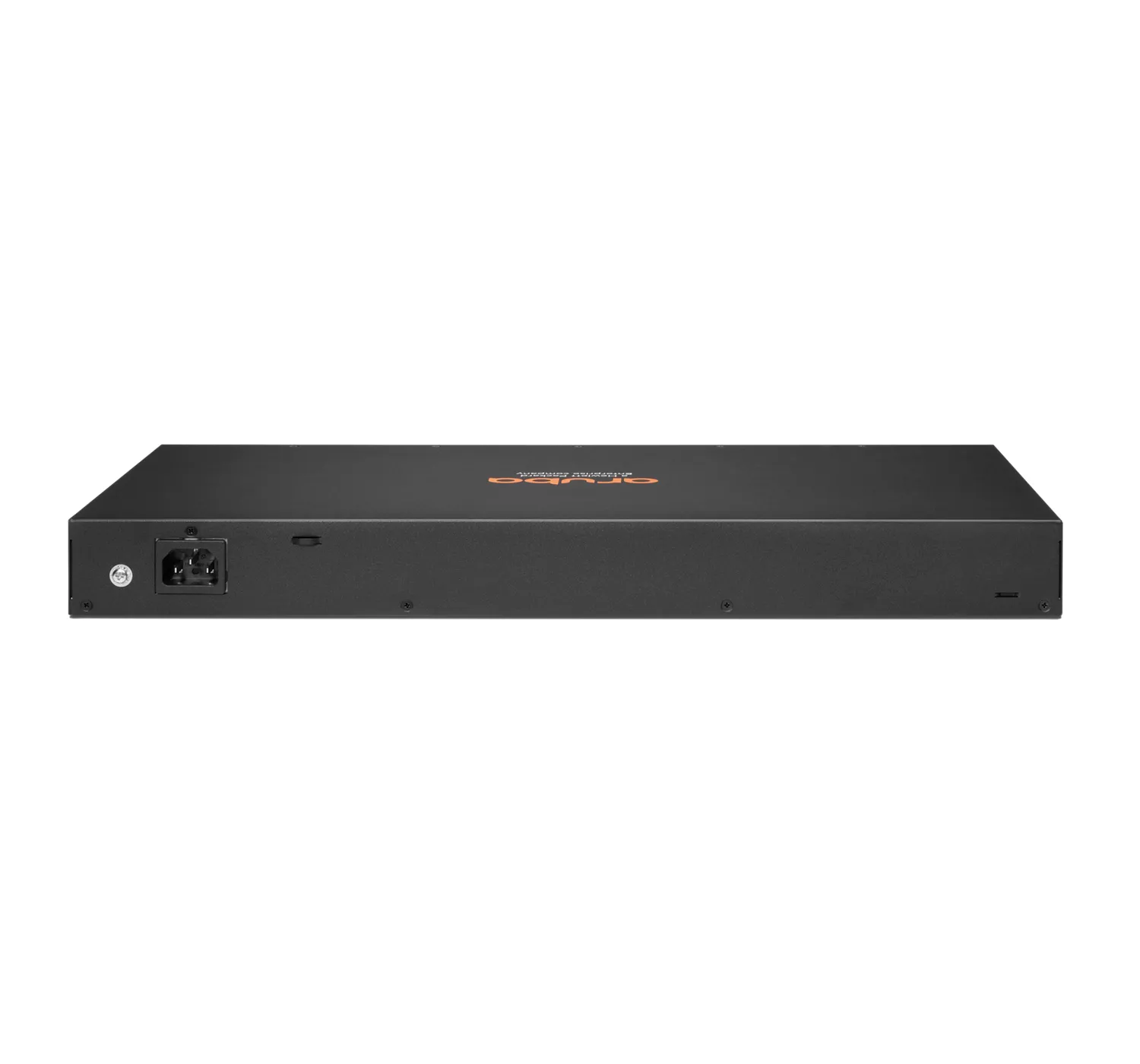

HPE Aruba 6000 24G Class4 PoE 4SFP 370W Switch - Kytkin - Hallinnoitu - 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - sivusta sivuun ilmavirtaus - räkkiin asennet

ID: R8N87A#ABB
Product unavailable
This product is end of life or currently not available.

Key Specifications

Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Ports & interfaces
Console portUSB
Installed SFP+ modules quantity0
Installed SFP modules quantity0
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity24
SFP module slots quantity4
Weight & dimensions
Weight3.62 kg
Height44 mm
Width442.5 mm
Depth268.2 mm
Energy management
Power sourceAC
AC input frequency50 - 60 Hz
AC input voltage200 - 240 V
Power consumption (max)32.7 W
Power supply includedcheckmark
Operational conditions
Operating relative humidity (H-H)15 - 95%
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 45 °C
Storage relative humidity (H-H)15 - 90%
Protocols
IPv4 FIB entries256
IPv6 FIB entries128
IPv4 & IPv6 featuresIPv4/IPv6 access-control list (ACL)
Networking
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
Flow control supportcheckmark
Port mirroringcheckmark
Link aggregationcheckmark
Auto MDI/MDI-Xcheckmark
Spanning tree protocolcheckmark
VLAN supportcheckmark
10G supportcross
Data transmission
MAC address table8192 entries
Switching capacity56 Gbit/s
Jumbo frames supportcheckmark
Latency (1 Gbps)1.5 µs
Throughput41.6 Mpps
Static routecheckmark
Security
Access Control List (ACL)checkmark
IGMP snoopingcheckmark
AuthenticationMAC-based authentication
DHCP featuresDHCP client
Management features
Switch layerL3
Quality of Service (QoS) supportcheckmark
Web-based managementcheckmark
Switch typeManaged
Cloud-managedcheckmark
Design
Rack mountingcheckmark
Form factor1U
Stackablecross
Power over Ethernet (PoE)
Power over Ethernet (PoE)checkmark
Total Power over Ethernet (PoE) budget370 W
Performance
Processor frequency1016 MHz
Internal memory8000 MB
Processor modelARM Cortex-A9
Flash memory16384 MB
Memory typeDDR3-SDRAM
Built-in processorcheckmark
Logistics data
Harmonized System (HS) code85176990
Multicast features
Multicast supportcheckmark
EAN190017560403
Warranty5 years
Source: Icecat.biz

The HPE Aruba Networking CX 6000 Switch Series is a modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and secure access, this switch family provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications. Prepare your network for tomorrow’s unpredictable demands with a powerful ASIC and the programmable HPE Aruba Networking CX Switch Operating System (AOS-CX) to deliver a more consistent, more efficient operator experience. This fully-managed series has convenient built-in uplinks with up to 740W of Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small work spaces. The CX 6000 Series is easy to deploy and use with flexible management choices, allowing the best fit for your business and network environment.

What is new supporting point:
Compact and fanless 12-port PoE model for space-constrained deployments.
Simplify IT operations with modern Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity.
Flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI.
Convenient built-in 1 GbE uplinks and up to 740W of Class 4 PoE for support of access points, client, and IoT devices.
Ready for software defined networking with REST APIs.
