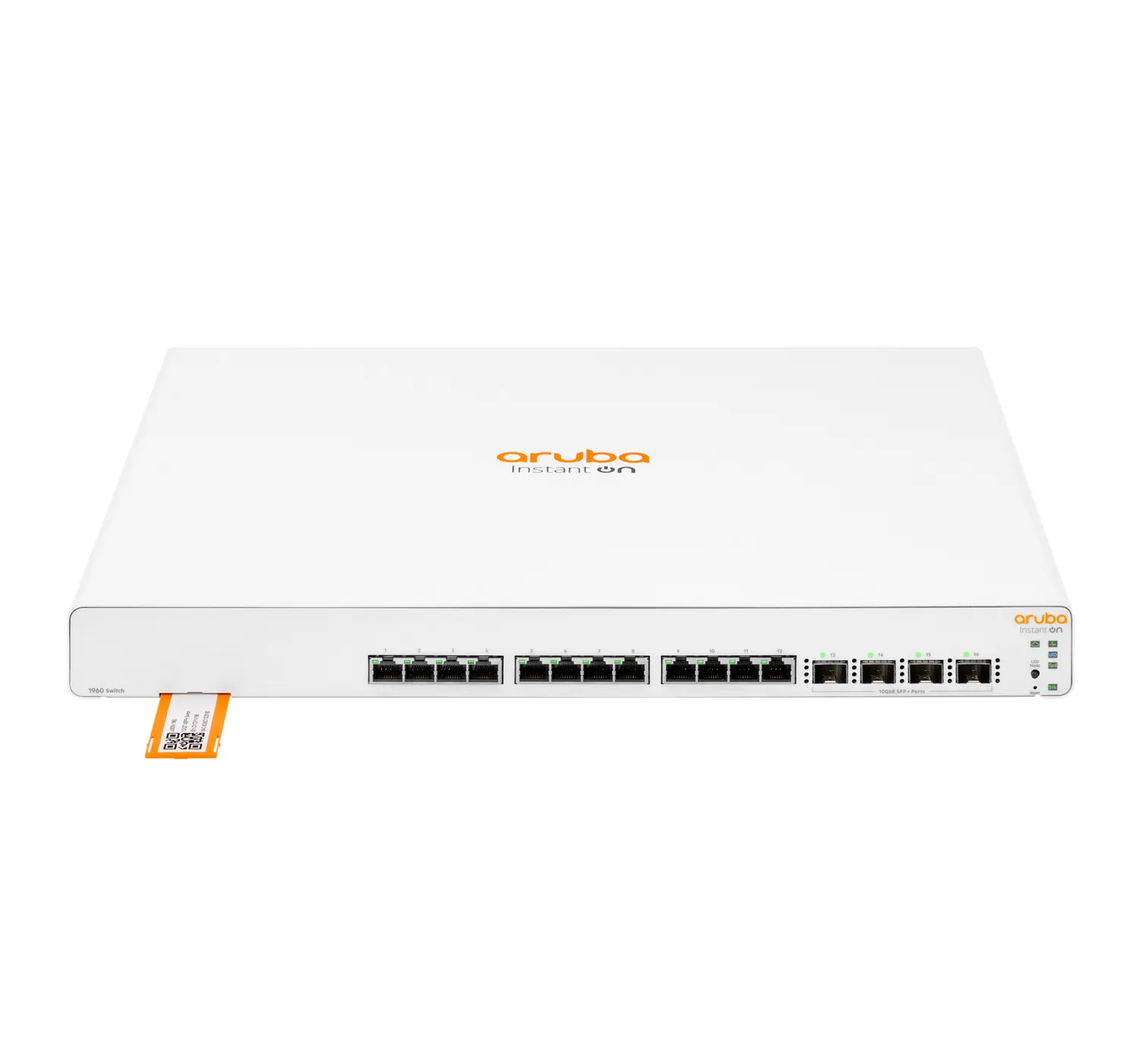

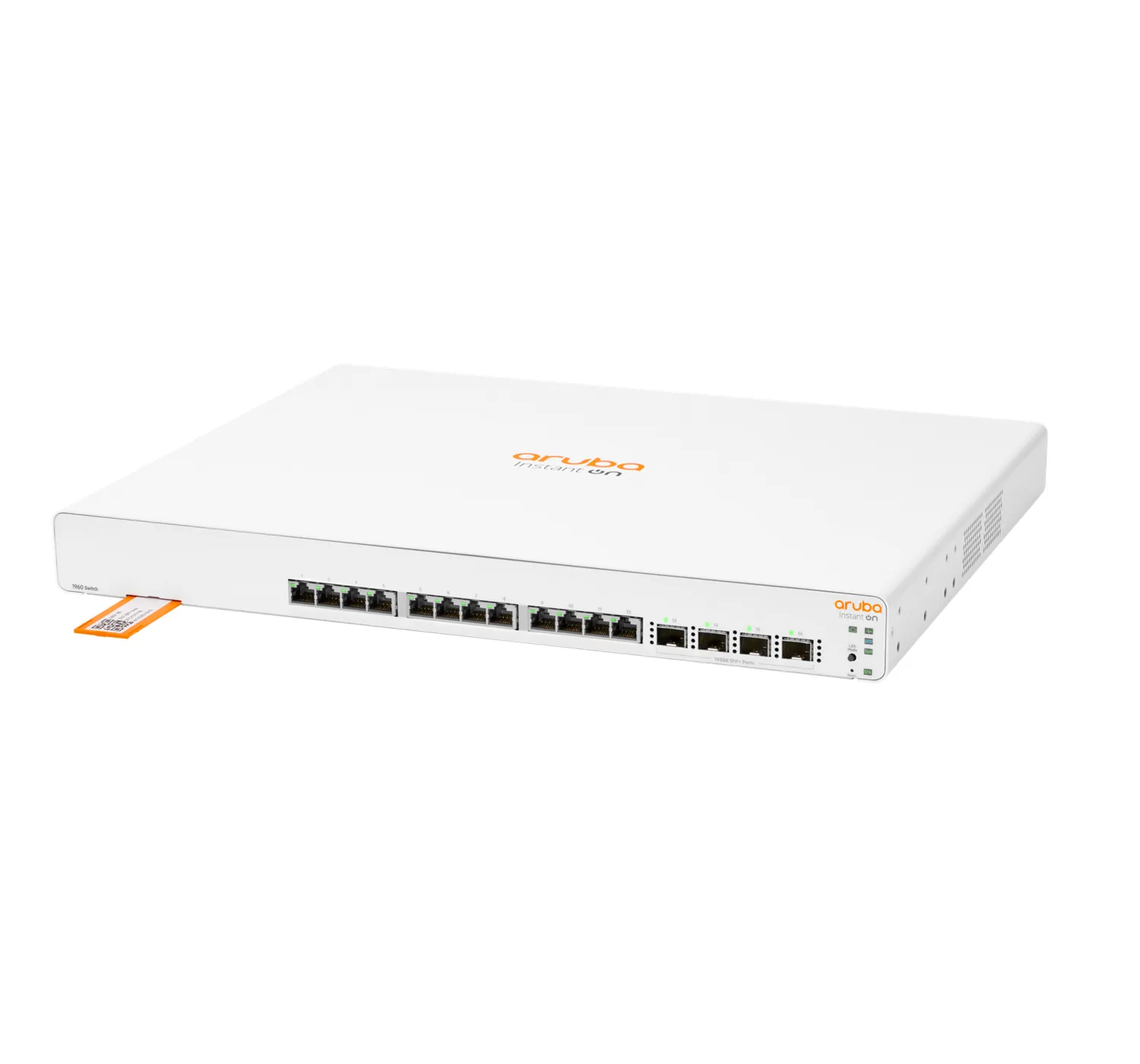

Aruba IOn 1960 12XT 4XF Sw Aruba IOn 1960 12XT 4XF Sw EU en
Manufacturer: ARUBA
				ID: JL805A#ABB


						101290€



								Show VAT 0%


								Show VAT 25,5%






					Multitronic Vaasa
Multitronic Pietarsaari
Multitronic Jyväskylä
Multitronic Lappeenranta
Multitronic Mariehamn
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
    					Specifications


    					Description


    				Store availability

    				Delivery


    					Price development


    					Manuals

    				    			| Ports & interfaces | |
| Installed SFP+ modules quantity | 0 |
| Installed SFP modules quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| SFP+ module slots quantity | 4 |
| Weight & dimensions | |
| Weight | 4.3 kg |
| Height | 44 mm |
| Width | 350.5 mm |
| Depth | 442.5 mm |
| Energy management | |
| Power source | AC |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 200 - 240 V |
| Power consumption (max) | 160 W |
| Power supply included |  |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 15 - 90% |
| Protocols | |
| IPv4 FIB entries | 512 |
| IPv6 FIB entries | 512 |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Networking | |
| Full duplex |  |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z |
| Flow control support |  |
| Port mirroring |  |
| Link aggregation |  |
| Rate limiting |  |
| Auto MDI/MDI-X |  |
| Spanning tree protocol |  |
| VLAN support |  |
| 10G support |  |
| Auto-sensing |  |
| Data transmission | |
| MAC address table | 16000 entries |
| Switching capacity | 320 Gbit/s |
| Jumbo frames support |  |
| Packet buffer memory | 1.5 MB |
| Latency (10-100 Mbps) | 7.4 µs |
| Latency (1 Gbps) | 4.2 µs |
| Latency (10 Gbps) | 1.1 µs |
| Throughput | 238 Mpps |
| Jumbo frames | 9216 |
| Security | |
| Access Control List (ACL) |  |
| SSH/SSL support |  |
| IGMP snooping |  |
| Authentication type | RADIUS |
| Authentication | Port-based authentication |
| DHCP features | DHCP snooping |
| Management features | |
| Switch layer | L2+ |
| Quality of Service (QoS) support |  |
| Web-based management |  |
| System event log |  |
| Switch type | Managed |
| Cloud-managed |  |
| Design | |
| Rack mounting |  |
| Form factor | 1U |
| Product colour | White |
| Stackable |  |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) |  |
| Performance | |
| Processor frequency | 2000 MHz |
| Internal memory | 1024 MB |
| Processor model | ARM Cortex-A9 |
| Flash memory | 512 MB |
| Memory type | DDR3-SDRAM |
| Built-in processor |  |
| Physical stacking (units) | 4 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Multicast features | |
| Multicast support |  |
| EAN | 0190017521770 |
| Warranty | 5 years |
| Source: Icecat.biz | |
HPE Networking Instant On Switch 1960 series, consist of advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. The Instant On 1960 switches are made to handle the today bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance. These switches come with flexible management option: local web GUI or Instant On mobile app and cloud-based web portal.
What is new supporting point:
HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
Simplify network management by stacking up to four Instant On 1960 switches and managing them through one single IP address. Stacking supported via local and cloud-managed stacking modes.
For environments with heavy bandwidth needs, 10 GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and nearly eliminates traffic bottlenecks.
Smart-managed layer 2+ Ethernet access switch series ready to deploy in 12-port, 24-port, and 48-port for non-PoE and PoE (supports Class 4 and Class 6 PoE) models.
The Networking Instant On 1960 aggregation switches comes with twelve 10 GBase-T and four SFP+ ports, providing 10 G connectivity to servers, network storage devices and access switches alike.
    		What is new supporting point:
HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
Simplify network management by stacking up to four Instant On 1960 switches and managing them through one single IP address. Stacking supported via local and cloud-managed stacking modes.
For environments with heavy bandwidth needs, 10 GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and nearly eliminates traffic bottlenecks.
Smart-managed layer 2+ Ethernet access switch series ready to deploy in 12-port, 24-port, and 48-port for non-PoE and PoE (supports Class 4 and Class 6 PoE) models.
The Networking Instant On 1960 aggregation switches comes with twelve 10 GBase-T and four SFP+ ports, providing 10 G connectivity to servers, network storage devices and access switches alike.
