Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Processor | |
| Processor manufacturer | Intel |
| Maximum number of SMP processors | 1 |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 128 GB |
| Memory | |
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | 2133,2666,3200,5200 MHz |
| Supported memory types | DDR4 |
| Memory channels | Dual-channel |
| Unbuffered memory |  |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 2133 MHz |
| Weight & dimensions | |
| Height | 65 mm |
| Width | 305 mm |
| Depth | 244 mm |
| Networking | |
| Ethernet LAN | |
| LAN controller | Realtek RTL8125-BG |
| Wi-Fi |  |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Internal I/O | |
| Number of SATA connectors | 0 |
| USB 2.0 connectors | 4 |
| CPU fan connector | |
| ATX Power connector (24-pin) | |
| Chassis intrusion connector | |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | |
| TPM connector | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| 12V power connector | |
| RGB LED pin header | |

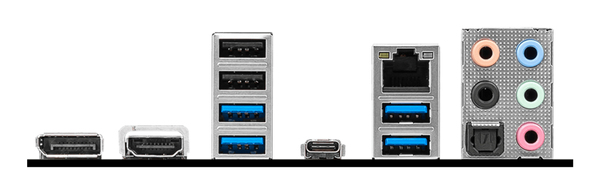

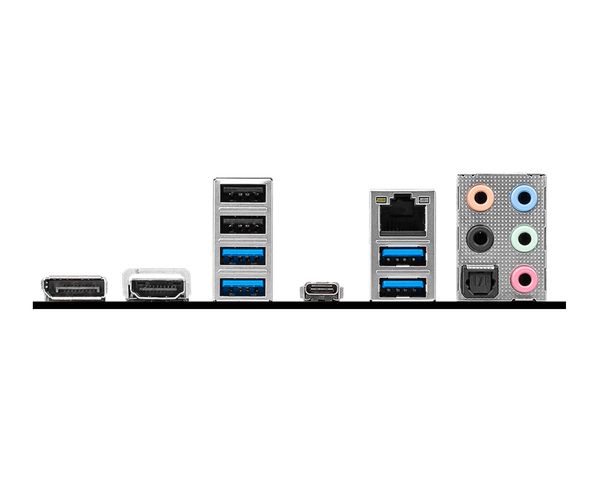

| Back panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| S/PDIF out port | |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Digital audio optical out | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| Number of HDDs supported | 4 |
| RAID support | |
| Number of storage drives supported | 6 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA |
| Packaging content | |
| Cables included | SATA |
| Expansion slots | |
| PCI Express x16 slots | 2 |
| PCI Express x1 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS | |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| ACPI version | 6.4 |
| Clear CMOS jumper | |
| System Management BIOS (SMBIOS) version | 3.4 |
| Other features | |
| Weight | 1 kg |
| Graphics | |
| Parallel processing technology support | Crossfire |
| On-board graphics card | |
| Features | |
| Motherboard chipset | Intel Z690 |
| Motherboard form factor | ATX |
| Product colour | Black |
| Audio output channels | 5.1 channels |
| Number of mounting holes | 9 |
| Windows operating systems supported | Windows 10, Windows 11 |
| Motherboard chipset family | Intel |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| EAN | 4719072902940 |
| Warranty | 1 year |
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
