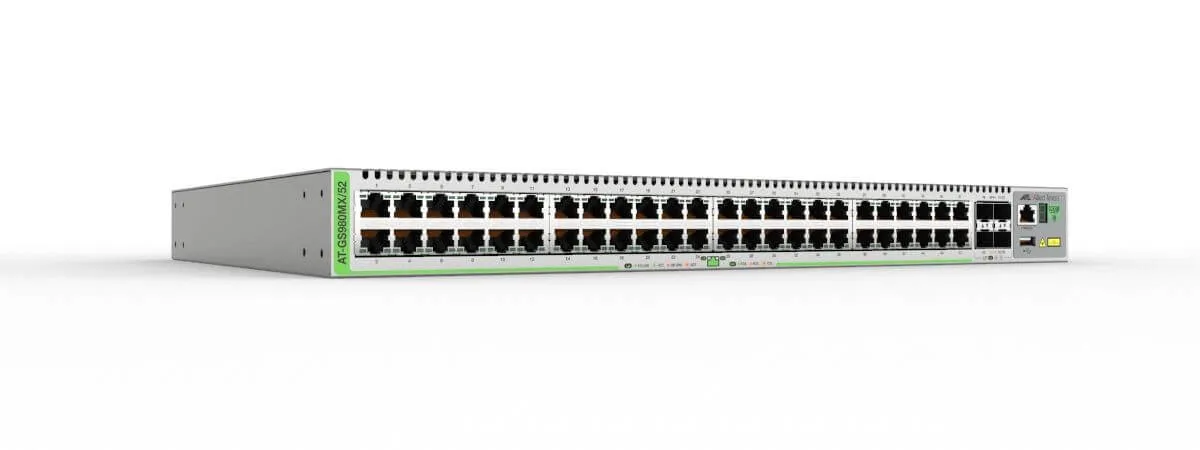

ALLIED L3 Stackable Switch 48x 10/100/1000-T 4x SFP+ Ports single fixed power supply EU Power Cord
Manufacturer: ALLIED TELESIS
ID: AT-GS980MX/52-50
207390€
Show VAT 0%
Show VAT 25,5%
Multitronic Vaasa
Multitronic Pietarsaari
Multitronic Jyväskylä
Multitronic Lappeenranta
Multitronic Mariehamn
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Manuals
| Ports & interfaces | |
| Installed SFP+ modules quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Weight & dimensions | |
| Weight | 4.8 kg |
| Height | 44 mm |
| Width | 441 mm |
| Depth | 323 mm |
| Energy management | |
| Power source | AC |
| Power consumption (max) | 60 W |
| Power supply included |  |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Non-operating altitude | 0 - 4000 m |
| Heat dissipation | 205 BTU/h |
| Protocols | |
| Management protocols | SNMP |
| Networking | |
| Full duplex | |
| Networking standards | IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Flow control support | |
| Port mirroring | |
| Link aggregation | |
| Broadcast storm control | |
| IP routing | |
| Number of VLANs | 4094 |
| Spanning tree protocol | |
| VLAN support | |
| 10G support | |
| |
| Virtual LAN features | Port-based VLAN, Private VLAN, Voice VLAN |
| Data transmission | |
| MAC address table | 16000 entries |
| Switching capacity | 176 Gbit/s |
| Jumbo frames support | |
| Forwarding rate | 130.9 Mpps |
| Latency (10-100 Mbps) | 8.29 µs |
| Latency (1 Gbps) | 7.63 µs |
| Latency (10 Gbps) | 1.63 µs |
| Packaging data | |
| Package weight | 6.8 kg |
| Package depth | 534 mm |
| Package height | 128 mm |
| Package width | 563 mm |
| Security | |
| MAC address filtering | |
| Access Control List (ACL) | |
| SSH/SSL support | |
| IGMP snooping | |
| Loop protection | |
| BPDU filtering/protection | |
| Authentication | MAC-based authentication |
| DHCP features | DHCP client, DHCP snooping |
| Management features | |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Switch type | Managed |
| Traffic classification | |
| Traffic shaping | |
| Configuring Location Settings (CLI) | |
| Packaging content | |
| Cables included | AC |
| Design | |
| Rack mounting | |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) |  |
| Performance | |
| Internal memory | 16384 MB |
| Flash memory | 256 MB |
| Memory type | DDR3-SDRAM |
| Noise level | 42 dB |
| Multicast features | |
| Multicast support | |
| EAN | 0767035216775 |
| Warranty | 5 years |
| Source: Icecat.biz | |
The GS980MX Series of stackable Layer 3 Lite switches feature high capacity, resiliency, and easy management. With Multi-Gigabit ports and Power over Ethernet, and available in both compact and high port density models, they provide an ideal choice for high-speed connectivity at the network edge.
