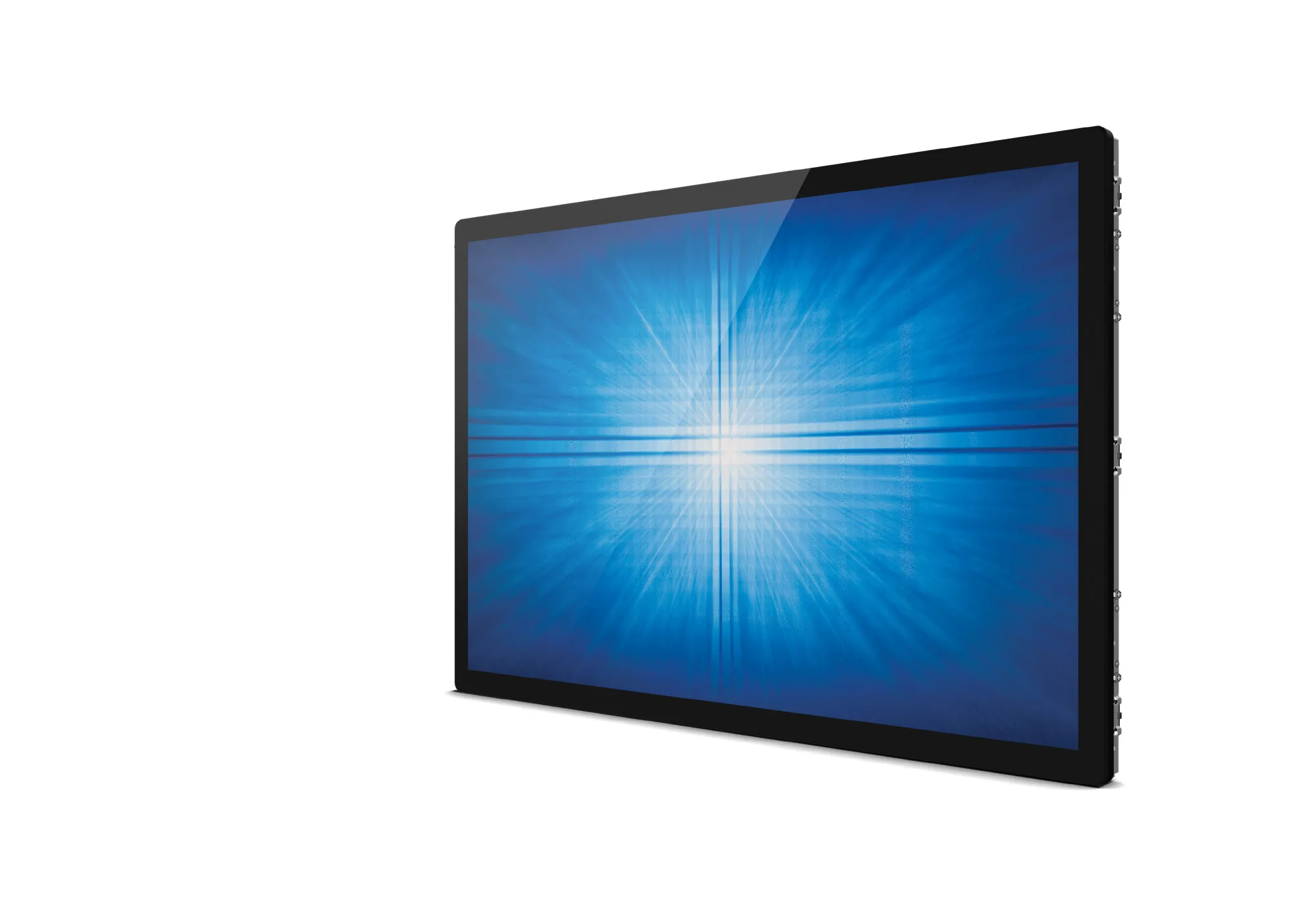

Elo Touch 32" ET3263L, Full HD, TFT - monitor

Manufacturer: ELO TOUCH
ID: E343671
Product unavailable
This product is end of life or currently not available.

Key Specifications

Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Manuals
Display
Contrast ratio (typical)3000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Display diagonal80 cm (31.5")
Display brightness500 cd/m²
Response time8 ms
Display resolution1920 x 1080 pixels
Touchscreencheckmark
Touchscreen technologyProjected capacitive system
Display technologyLED
Number of simultaneous touchpoints40
Native aspect ratio16:9
HD typeFull HD
Panel typeTFT
Display number of colours16.78 million colours
Ports & interfaces
Ethernet LAN (RJ-45) ports1
HDMI ports quantity2
HDMI version1.4
Energy management
Power consumption (typical)44.3 W
Power consumption (off)0.2 W
Power consumption (standby)0.61 W
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Energy efficiency scaleA to G
Energy efficiency class (SDR)E
Energy consumption (SDR) per 1000 hours26 kWh
Operational conditions
Operating relative humidity (H-H)20 - 80%
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)10 - 90%
Packaging data
Package weight17 kg
Package depth306 mm
Package height680 mm
Package width1000 mm
Packaging content
Cables includedAC, HDMI, USB, VGA
Other features
Viewable size, horizontal69.8 cm
Viewable size, vertical39.3 cm
Built-in microphonecross
Digital horizontal frequency31.5 - 80 kHz
Digital vertical frequency47 - 63 Hz
Maximum refresh rate60 Hz
Built-in cameracross
Weight (without stand)11 kg
Height (without stand)452.7 mm
Depth (without stand)55 mm
Design
Product colourBlack
Panel mounting interface400 x 200 mm
Anti-glare screencheckmark
VESA mountingcheckmark
Screen shapeFlat
Performance
Mean time between failures (MTBF)50000 h
On Screen Display (OSD)checkmark
HDCPcheckmark
Features
Wall mountablecheckmark
EAN0843173126906
Warranty2 years
Source: Icecat.biz
The perfect touchscreen for any enclosure.
Elo's 3263L 32-inch full HD open-frame delivers a state-of-the-art slim form factor designed for easy integration into enclosures and kiosks. Whether for self-order and self-checkout kiosks or industrial controls, operating room control boards and wayfinding solutions, Elo’s commercial-grade interactive displays offer the versatility to add touch to your solution.

Brilliant, interactive TouchPro PCAP display.
The 3263L offers anti-glare or anti-friction models with edge-to-edge glass and up to 40 simultaneous touches for an enhanced, tablet-like experience.

Designed for easy integration.
Mount the 3263L touchscreen monitor in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design.

Get the viewing experience you want to see.
Whether viewing straight on or at an angle, close-up or from a distance, Elo’s touchscreen displays offer optimal clarity for the viewing experience.

Place your touchscreen behind an extra layer of protection.
For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo’s TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.
