Thermaltake Toughpower PF1 TT Premium Edition 1050W - PSU, 80 Plus Platinum
Key Specifications
Choose one or multiple features to search for items that have the same specifications.| Ports & interfaces | |
| ATX Power connector (24-pin) | ![]() |
| PCI Express connector | ![]() |
| Motherboard power connector | 24-pin ATX |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| EPS power connector (8-pin) | ![]() |
| ATX power connector (20+4 pin) | ![]() |
| PCI Express power connectors (8-pin) | 8 |
| CPU power connector (4+4 pin) | ![]() |
| PCI Express power connectors (6+2 pin) | 8 |
| Cabling type | Fully-Modular |
| Motherboard power cable length | 60 cm |
| SATA power cable length | 500,650,800,950 mm |
| Peripheral (Molex) power cable length | 500,650,800,950 mm |
| PCI Express power cable length | 65 cm |
| Floppy disk drive cable length | 15 cm |
| EPS power connector (4+4 pin) | ![]() |
| Weight & dimensions | |
| Height | 86 mm |
| Width | 150 mm |
| Depth | 140 mm |
| Energy management | |
| Peak power | 1260 W |
| Input current | 8 - 16 A |
| Nominal power | 1050 W |
| Hold time | 16 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 1050 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 87.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 1050 W |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage temperature (T-T) | -40 - 55 °C |
| Operating temperature (T-T) | 5 - 50 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Certificates | |
| Certification | CE/UL/TÜV/FCC/CB |
| RoHS compliance | ![]() |
| 80 PLUS certification | 80 PLUS Platinum |
| Packaging content | |
| Cable tie(s) included | ![]() |
| Design | |
| Product colour | Black |
| Illumination | ![]() |
| Number of fans | 1 fan(s) |
| On/off switch | ![]() |
| Fan diameter | 12 cm |
| Performance | |
| Mean time between failures (MTBF) | 120000 h |
| Form factor | ATX |
| Purpose | PC |
| Bearing technology | HDB |
| Supported motherboard form factors | ATX |
| Silent mode | ![]() |
| Power supply unit (PSU) form factor | ATX |
| EAN | 4713227530057 |
The Thermaltake Toughpower PF1 is a 1050W power supply unit engineered to provide stable and continuous power for demanding desktop systems. It features an 80 PLUS Platinum certification, achieving up to 92% efficiency to minimize excess heat generation and reduce operating costs. The unit's fully modular design permits the use of only essential cables, which contributes to a cleaner build and less obstructed airflow. This power capacity and efficiency level make it suitable for multi-GPU configurations and overclocked processors.

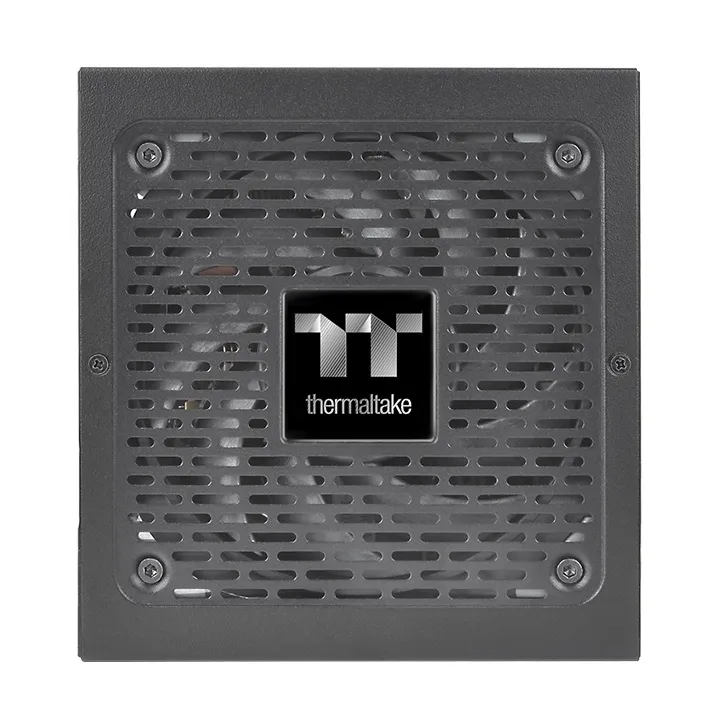

A 120mm high static pressure fan provides active cooling and operates with a semi-passive mode, remaining off during low-load scenarios for silent operation. Housed in a standard ATX form factor with a compact 140mm depth, it ensures compatibility with a broad range of PC cases. The supplied cables are flat and finished in black, facilitating discreet and efficient cable management. The power supply incorporates a comprehensive set of protection features, including Over Current, Over Voltage, and Short Circuit Protection, to ensure component safety.
Key Features:- Delivers 1050W of continuous power
- Features 80 PLUS Platinum efficiency certification
- Utilizes a fully modular cabling system
- Built on the standard ATX form factor
- Equipped with a 120mm fan with a silent mode
- Includes flat, all-black cables for cable management
- Provides 8 PCIe and 12 SATA power connectors
- Measures 150mm x 86mm x 140mm
