Key Specifications
Choose one or multiple features to search for items that have the same specifications.| Weight & dimensions | |
| Weight | 450 g |
| Height | 126 mm |
| Width | 93 mm |
| Depth | 78 mm |
| Heat pipes diameter | 6 mm |
| Energy management | |
| Rated current | 0.3 A |
| Voltage | 12 V |
| Fan voltage | 12 V |
| Fan current | 0.3 A |
| Thermal Design Power (TDP) | 130 W |
| Rated voltage | 12 V |
| LED voltage | 5 V |
| Packaging content | |
| Remote control included | ![]() |
| Mounting kit | ![]() |
| Screws included | ![]() |
| CPU bracket(s) | ![]() |
| Other features | |
| Cooling capacity in watts (max) | 130 W |
| Design | |
| Material | Aluminium, Copper, Plastic |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| RoHS compliance | ![]() |
| Illumination colour | Multi |
| Base plate material | Copper |
| Fan connector | 4-pin |
| Number of heat pipes | 4 |
| Illumination LED | ![]() |
| Fins material | Aluminium |
| Performance | |
| Type | Cooler |
| Fan diameter | 9.2 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 775 (Socket T), Socket AM1, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Suitable location | Processor |
| Maximum airflow | 36 cfm |
| Minimum airflow (imperial) | 15 cfm |
| Noise level (low speed) | 20 dB |
| Noise level (high speed) | 30.5 dB |
| Fan speed (max) | 2300 RPM |
| Fan speed (min) | 900 RPM |
| Rotational speed (max) | 2300 RPM |
| Rotational speed (min) | 900 RPM |
| Quantity per pack | 1 pc(s) |
| Fan noise level (max) | 30.5 dB |
| Pulse-width modulation (PWM) support | ![]() |
| EAN | 6970620550541 |

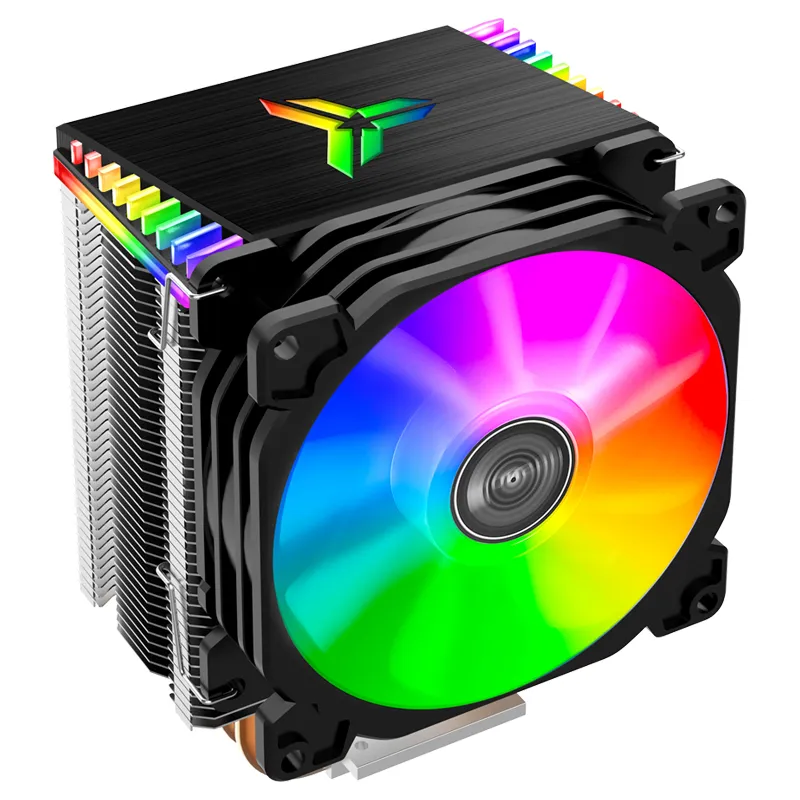

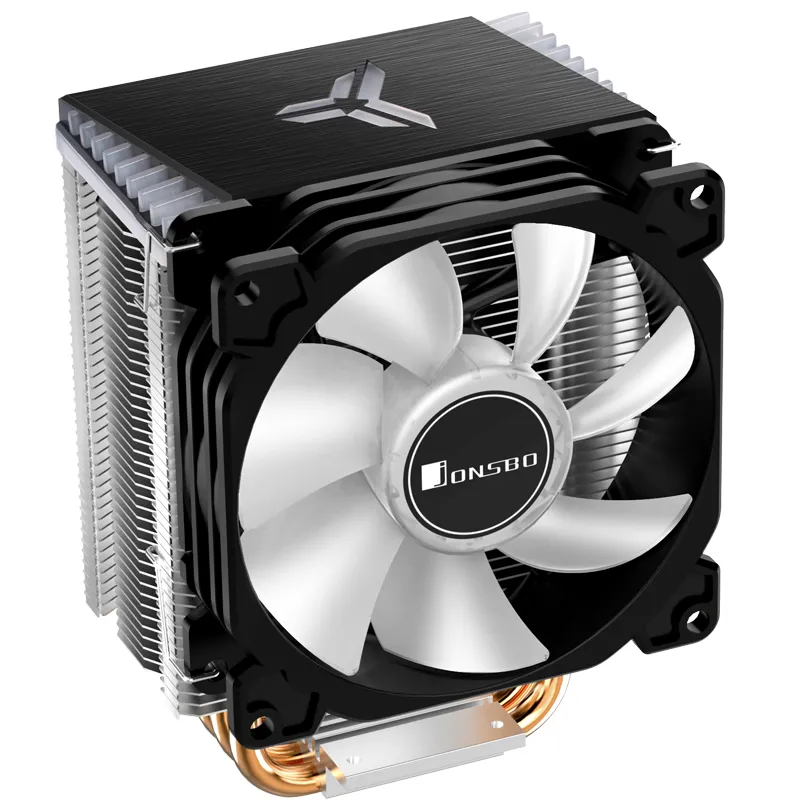

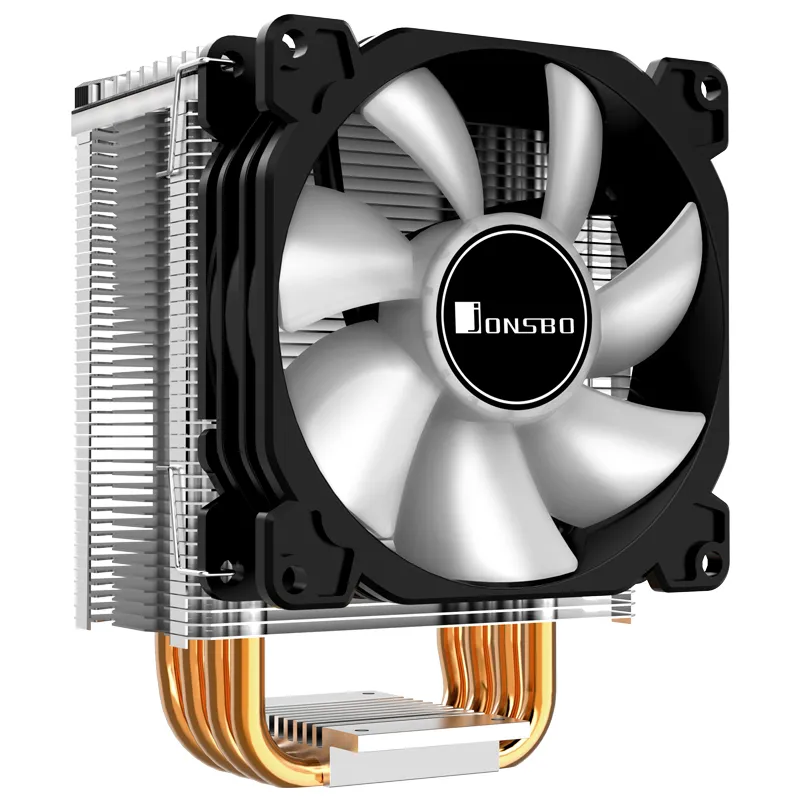

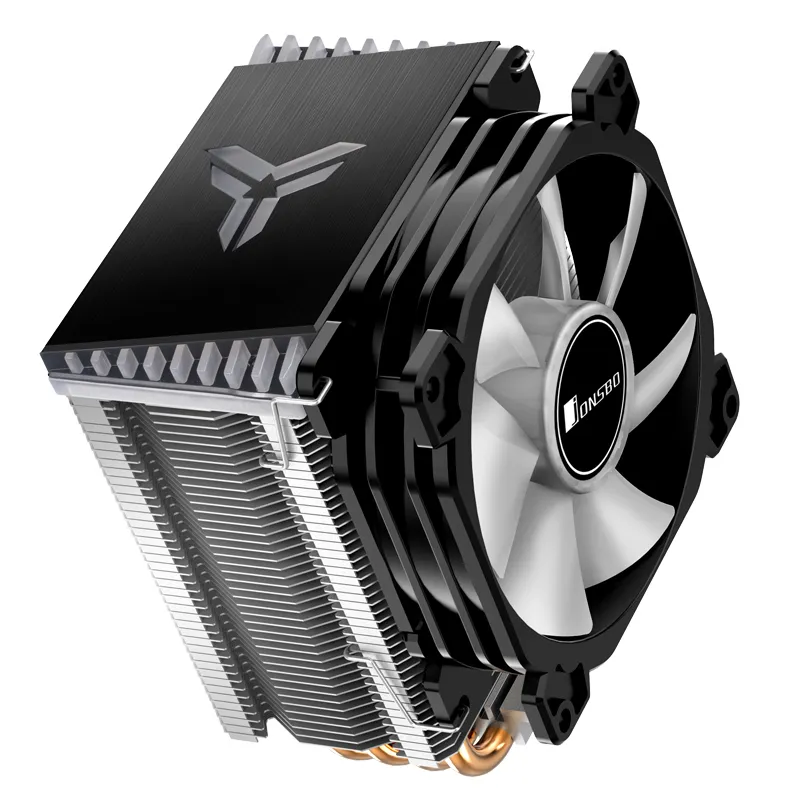

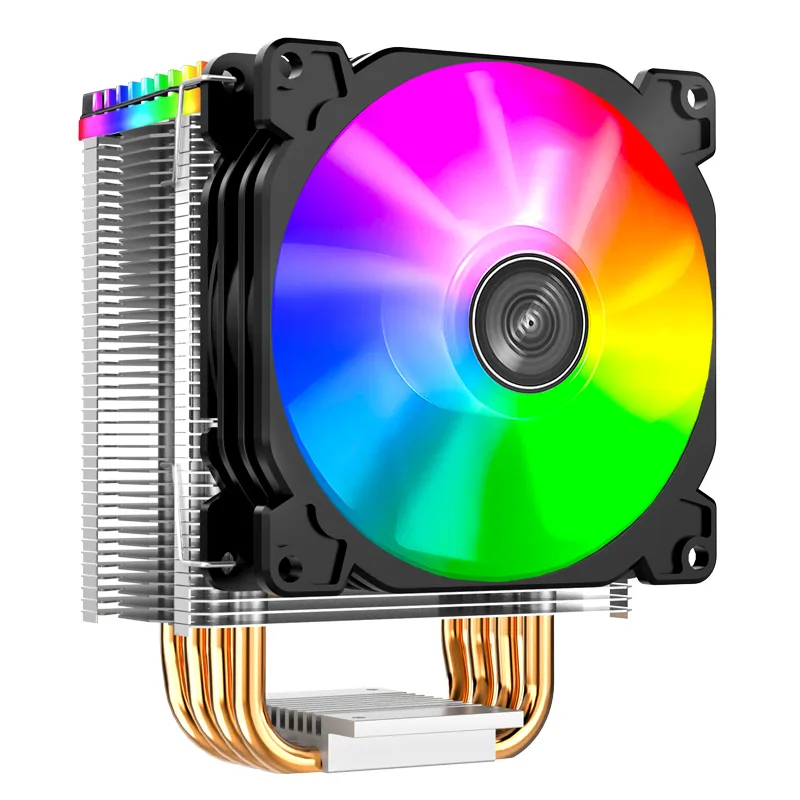

The JONSBO CR-1400 ARGB Black functions as an air-cooling unit suitable for CPUs rated up to 130W TDP. This compact tower cooler incorporates four 6 mm copper heat pipes directly coupled to the copper base plate, optimizing thermal energy absorption and transfer to the aluminum fin array. Constructed primarily of copper and aluminum, the unit maintains a profile of 126 mm in height, a critical dimension for assessing compatibility within standardized PC enclosures.
Heat dissipation is managed by a single 92 mm fan, featuring PWM support that adjusts the rotational speed between 900 RPM and 2300 RPM depending on thermal demand. At maximum operation, the fan moves 36 CFM of air while producing a peak noise output of 30.5 dB. The cooler includes mounting hardware supporting major modern platforms, including Intel LGA 1700 and AMD AM5, and features integrated 5V ARGB illumination for system synchronization.
Key Features:- Suitable for processors with up to 130W TDP
- Features four 6 mm copper heat pipes
- 92 mm fan with Pulse-Width Modulation (PWM) support
- Rotational speed range of 900 RPM to 2300 RPM
- Maximum noise output measures 30.5 dB
- Compatible with Intel LGA 1700 and AMD AM5 sockets
- Integrated 5V Addressable RGB (ARGB) lighting
- Dimensions measure 126 mm H x 93 mm W x 78 mm D
