Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Manuals
| Technical details | |
| Warranty period | 3 year(s) |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | AM5 |
| Supported processor sockets | Socket AM5 |
| Memory | |
| Maximum internal memory | 256 GB |
| Supported memory clock speeds | 8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz |
| Supported memory types | DDR5 |
| Memory channels | Dual-channel |
| Unbuffered memory |  |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 8000 MHz |
| Maximum internal memory per slot | 64 GB |
| ECC сompatibility | Non-ECC |
| Weight & dimensions | |
| Height | 35 mm |
| Width | 244 mm |
| Depth | 244 mm |
| Networking | |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| Ethernet LAN | |
| Bluetooth | |
| LAN controller | Realtek RTL8125 |
| Wi-Fi | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Realtek RTL8852CE |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| CPU fan connector | |
| ATX Power connector (24-pin) | |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | |
| TPM connector | |
| EPS power connector (8-pin) | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Front panel connector | |
| RGB LED pin header | |
| Number of RGB LED pin headers | 3 |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Back panel I/O ports | |
| PS/2 ports quantity | 1 |
| Line-in | |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| WiFi-AP antenna jack | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Storage controllers | |
| RAID levels | 0, 1, 10 |
| Number of HDDs supported | 4 |
| RAID support | |
| Number of storage drives supported | 6 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Packaging data | |
| Package weight | 1.53 kg |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package width | 270 mm |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | |
| Screws included | |
| Antenna included | |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2580 |
| 2nd M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| ACPI version | 5.0 |
| Clear CMOS jumper | |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Other features | |
| Weight | 1.44 kg |
| Graphics | |
| Maximum resolution | 4096 x 2160 pixels |
| Parallel processing technology support | Not supported |
| DirectX version | 12.0 |
| HDCP | |
| Features | |
| Motherboard chipset | AMD B650 |
| Motherboard form factor | Micro ATX |
| Product colour | Dark brown |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| PC health monitoring | Fan, Temperature, Voltage |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Power source type | ATX |
| Motherboard chipset family | AMD |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| EAN | 4719331862213 |
| Warranty | 1 year |
| Source: Icecat.biz | |

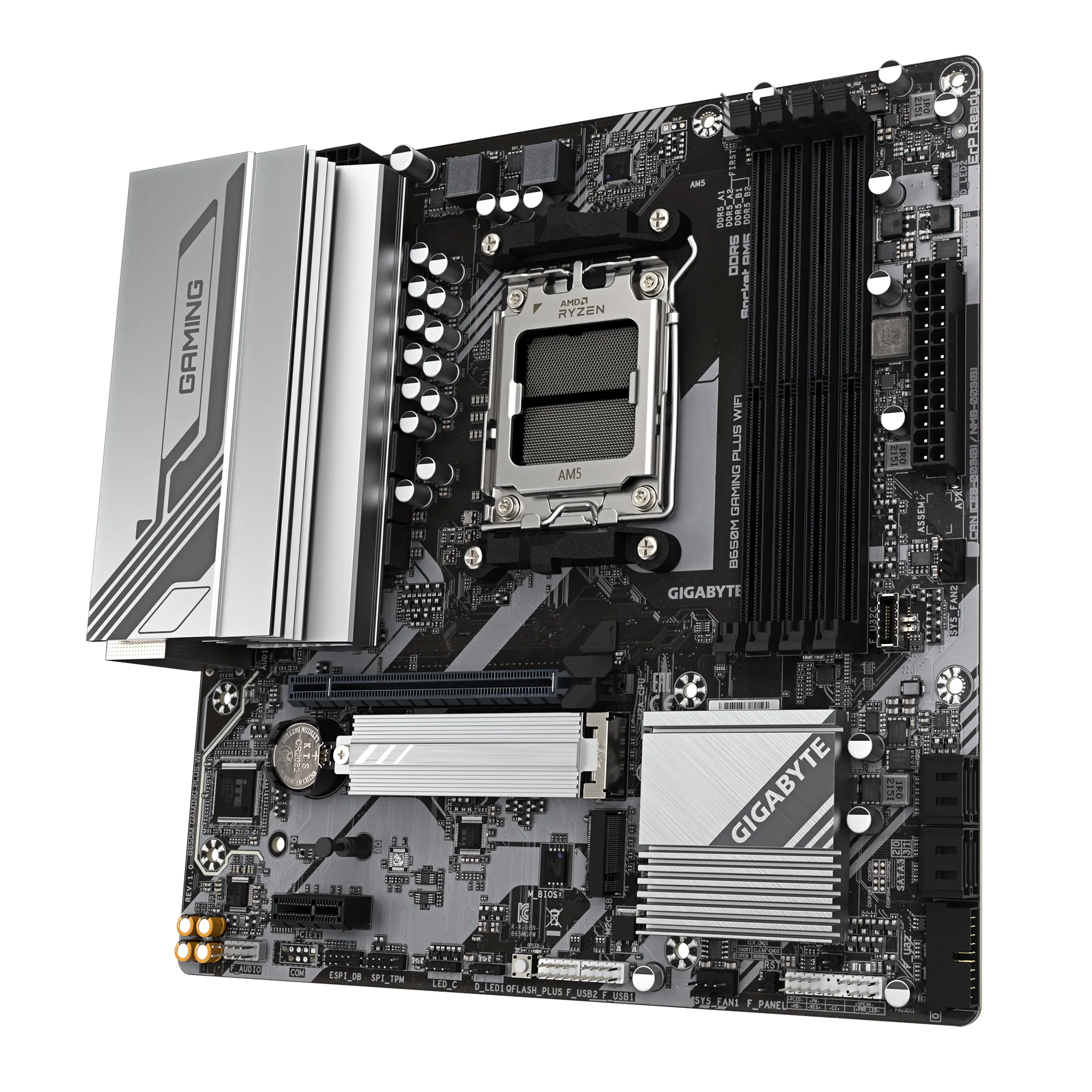

The Gigabyte B650M GAMING PLUS WF is a Micro-ATX motherboard designed for gamers and PC enthusiasts looking to build a high-performance system based on the AMD platform. Supporting AMD Ryzen™ 7000, 8000, and 9000 Series processors, this motherboard provides a solid foundation for gaming rigs and content creation workstations. It boasts a robust 5+2+2 phases digital VRM solution for stable power delivery, ensuring reliable performance even under heavy loads. The inclusion of Wi-Fi 6 and 2.5GbE LAN offers fast and reliable network connectivity for online gaming and streaming.
This motherboard features dual-channel DDR5 memory support with AMD EXPO™ and Intel® XMP compatibility, allowing for memory overclocking up to 8000MHz and beyond, enhancing overall system responsiveness. The B650M GAMING PLUS WF is equipped with a PCIe 4.0 x16 slot with EZ-Latch design for quick and easy graphics card installation. It also includes PCIe 4.0 M.2 connectors for high-speed NVMe SSDs, along with ample USB connectivity, including USB 3.2 Gen1 Type-C. With Smart Fan 6 technology, users can optimize cooling performance with multiple temperature sensors and hybrid fan headers, ensuring a cool and quiet system.
Key Features:- AMD Socket AM5: Supports AMD Ryzen™ 7000/8000/9000 Series Processors
- Chipset: AMD B650
- Memory: 4 x DDR5 DIMM slots, supports up to 192GB, AMD EXPO & Intel XMP Support
- PCIe Slots: 1 x PCIe 4.0 x16 slot (with EZ-Latch), 1 x PCIe 3.0 x1 slot
- M.2 Connectors: 2 x PCIe 4.0 x4 M.2 connectors
- SATA Ports: 4 x SATA 6Gb/s ports
- Networking: 2.5GbE LAN, Wi-Fi 6 802.11ax
- Rear USB Ports: 1 x USB 3.2 Gen 1 Type-C, 3 x USB 3.2 Gen 1, 2 x USB 2.0/1.1
- Audio: Realtek® Audio CODEC, High-End Audio Capacitors, Audio Noise Guard
- Cooling: Smart Fan 6 with multiple temperature sensors and hybrid fan headers
- BIOS: Q-Flash Plus for updating BIOS without CPU, memory, and GPU
- Form Factor: Micro-ATX
- Gigabyte B650M GAMING PLUS WIFI Motherboard
- I/O Shield
- SATA Cables
- Wi-Fi Antennas
- User Manual
- M.2 Screws/Standoffs
