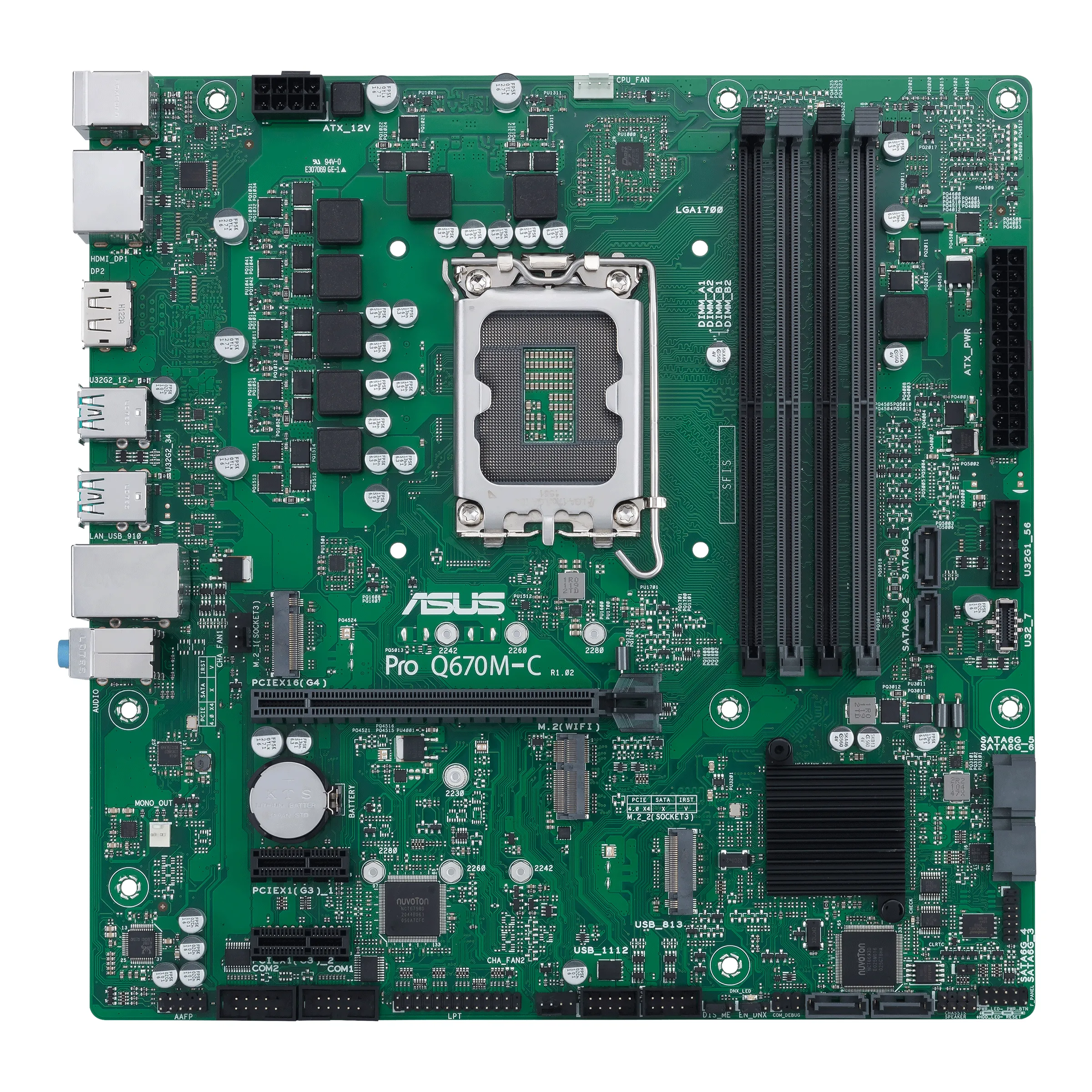

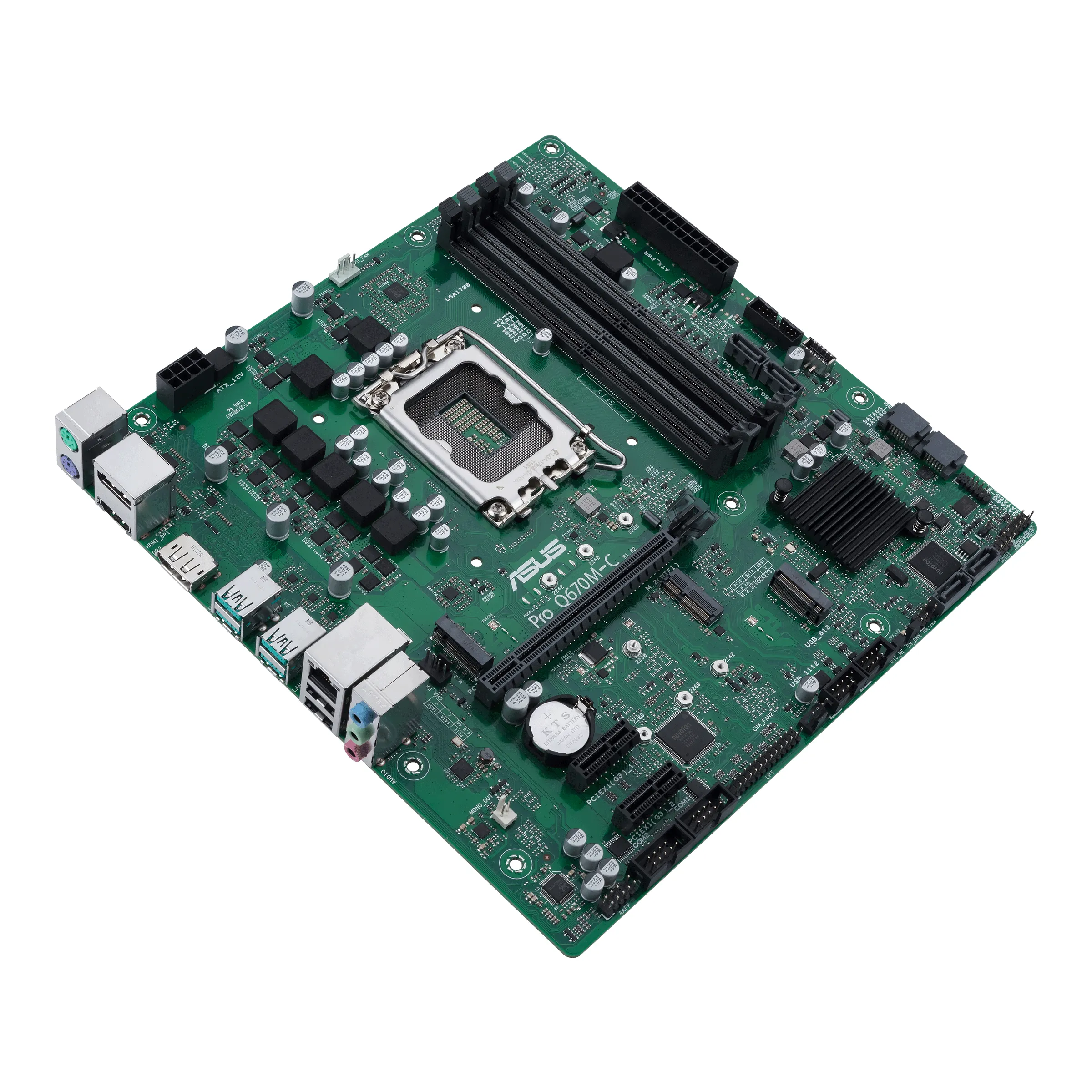

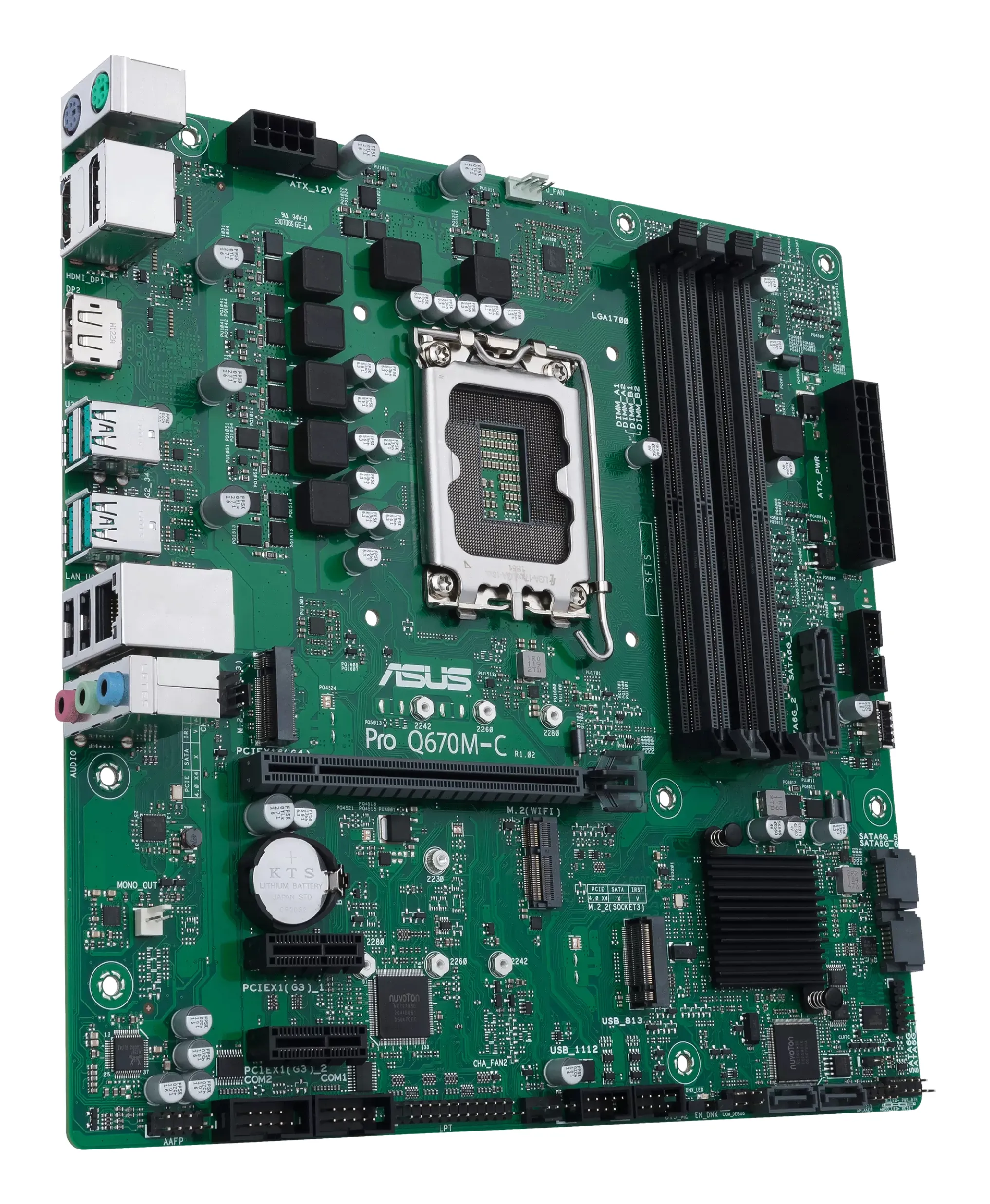

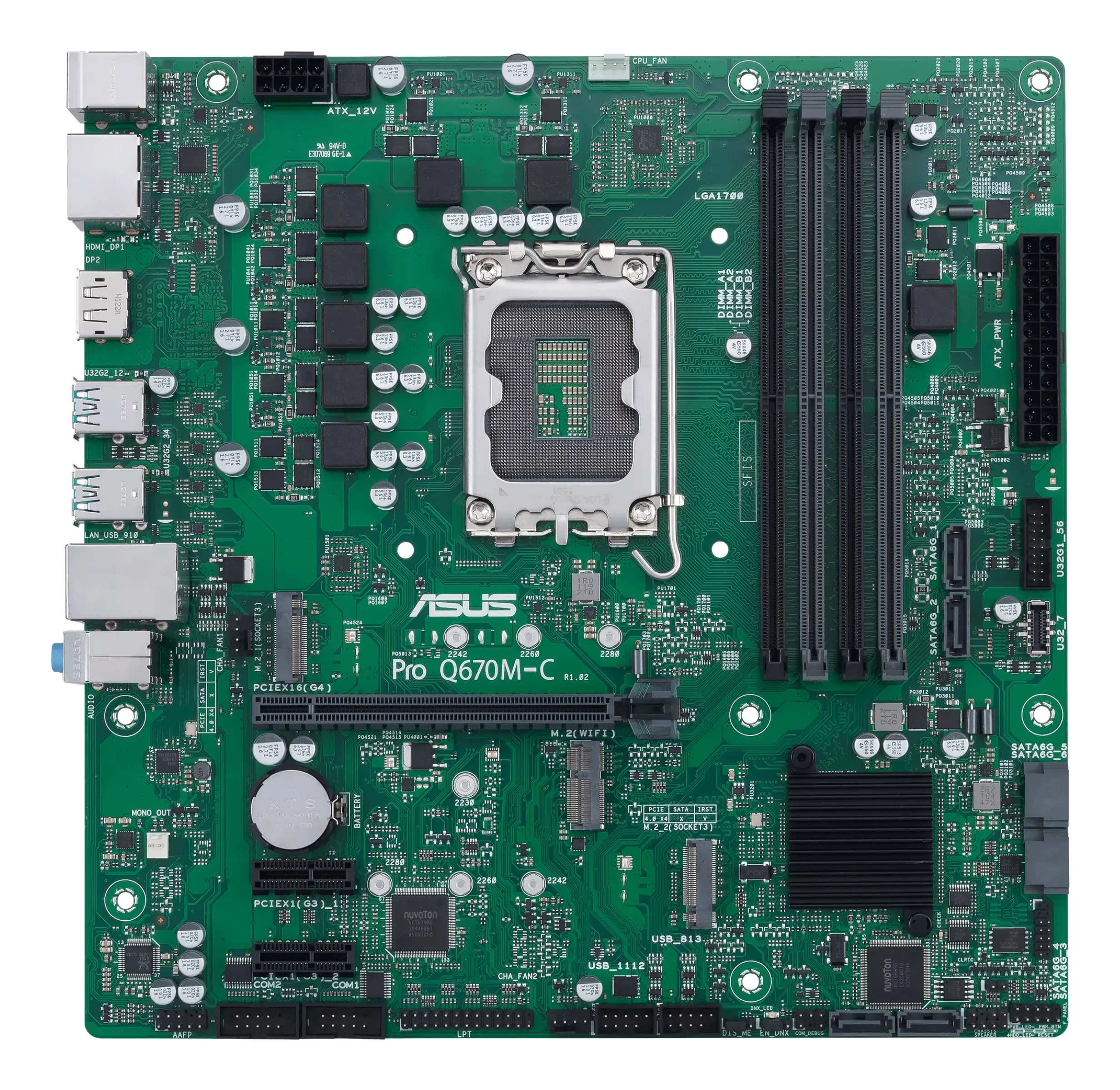

Asus PRO Q670M-C-CSM LGA1700 mATX Motherboard

The ASUS PRO Q670M-C-CSM is a micro-ATX motherboard built for business and enterprise applications, utilizing the Intel Q670 chipset and LGA1700 socket. It provides native support for 12th, 13th, and 14th generation Intel Core processors, ensuring compatibility with a wide range of CPUs. The board is engineered for stability and includes robust hardware protection features for reliable, continuous operation. With four DDR5 DIMM slots, the system can be configured with up to 192 GB of dual-channel memory, suitable for data-intensive workloads and multitasking environments. Its compact form factor is designed for integration into smaller workstation chassis.

This motherboard offers a functional array of connectivity and expansion options. For storage, it includes two M.2 slots operating on the PCIe 4.0 interface for high-speed SSDs, alongside six SATA 6Gb/s ports that support RAID 0, 1, 5, and 10 configurations. The primary expansion slot is a PCIe 4.0 x16, supplemented by two PCIe 3.0 x1 slots for additional peripherals. Networking is handled by an integrated 1Gb Ethernet port. For display connectivity, the rear I/O provides one HDMI 2.1 port and two DisplayPort 1.4 outputs, allowing for multi-monitor setups directly from integrated graphics.

• Supports 12th, 13th, and 14th Gen Intel Core processors
• Features the Intel Q670 business-oriented chipset
• Utilizes a compact micro-ATX form factor
• Accommodates up to 192 GB of DDR5 memory
• Provides two M.2 PCIe 4.0 slots and six SATA ports
• Includes one PCIe 4.0 x16 and two PCIe 3.0 x1 slots
• Equipped with a rear USB 3.2 Gen 1 Type-C port
• Offers dual DisplayPort 1.4 and single HDMI 2.1 outputs
• Features an onboard 1Gb Ethernet controller
• Includes internal headers for two legacy COM ports
