Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Manuals
| Weight & dimensions | |
| Radiator width | 12 cm |
| Radiator depth | 39.7 cm |
| Radiator height | 2.7 cm |
| Fan dimensions (W x D x H) | 120 x 25 x 120 mm |
| Pump width | 6.7 cm |
| Pump depth | 6.7 cm |
| Pump height | 4.85 cm |
| Fan 2 dimensions (W x D x H) | 120 x 25 x 120 mm |
| Energy management | |
| Rated current | 0.25 A |
| Pump voltage | 12 V |
| Pump current | 250 mA |
| Fan voltage | 12 V |
| Fan current | 0.25 A |
| Thermal Design Power (TDP) | 280 W |
| Rated voltage | 12 V |
| Fan power consumption | 3 W |
| Pump power consumption | 3 W |
| LED voltage | 5 V |
| Packaging content | |
| Package type | Box |
| Mounting kit |  |
| Screws included | |
| CPU socket spacer(s) | |
| CPU bracket(s) | |
| RGB controller included | |
| Other features | |
| Noise level | 28 dB |
| Built-in display |  |
| Number of fans supported | 3 |
| Fan rated voltage | 10.8 - 13.2 V |
| Design | |
| Product colour | Black |
| Brightness adjustment | |
| Number of fans | 2 fan(s) |
| Illumination colour | Multi |
| Base plate material | Copper |
| Fan connector | 3-pin + 4-pin |
| Radiator material | Aluminum |
| Illumination LED | |
| Number of fins | 13 |
| Fan controller | |
| LED connector type | 3-pin |
| Performance | |
| Type | Liquid cooling kit |
| Operating temperature (T-T) | -10 - 60 °C |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM4, Socket AM5, Socket TR4 |
| Suitable location | Processor |
| Maximum airflow | 71.5 cfm |
| Maximum air pressure | 2.45 mmH2O |
| Noise level (low speed) | 28 dB |
| Noise level (high speed) | 31 dB |
| Pump motor speed (max) | 2800 RPM |
| Pump motor speed | 2800 RPM |
| Fan speed (max) | 1800 RPM |
| Fan speed (min) | 800 RPM |
| Rotational speed (min) | 800 RPM |
| Bearing type | Hydraulic |
| Fan noise level (max) | 31 dB |
| Pump noise level | 28 dB |
| Pulse-width modulation (PWM) support | |
| Pump connector | 3-pin |
| Pump's mean time to failure (MTTF) | 40000 h |
| Fan's mean time to failure (MTTF) | 40000 h |
| Fan 2 rotational speed (min) | 800 RPM |
| Fan 2 rotational speed (max) | 1800 RPM |
| Fan bearing technology | Hydraulic bearing |
| EAN | 0761345400558 |

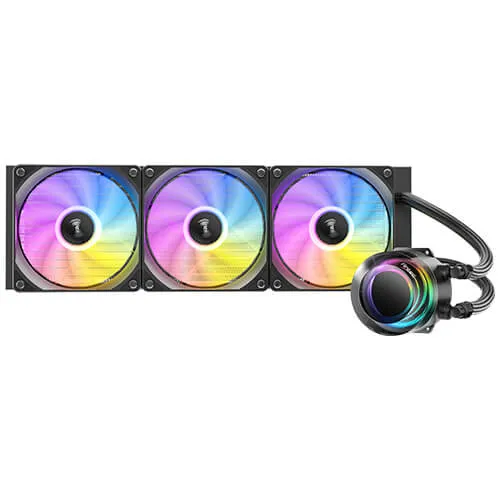

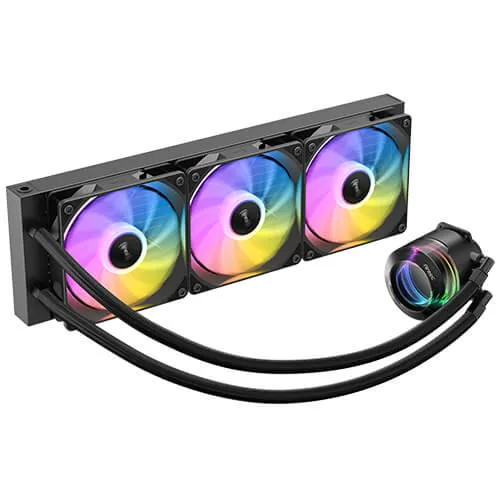

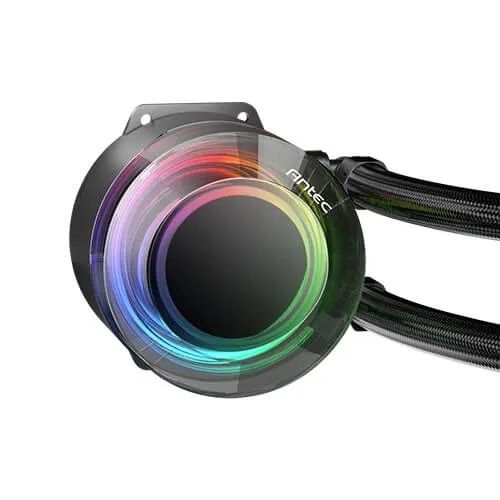

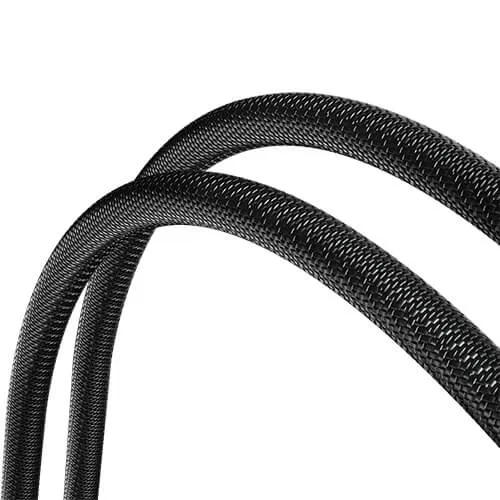

The Antec Vortex Lum 360 ARGB is an all-in-one liquid CPU cooler designed for thermal management in high-performance systems. Its core components include a pump head with a suspended spiral aesthetic, a large copper base plate for heat absorption, and a 360mm aluminum radiator. These elements work together to transfer thermal energy away from the processor. The system connects the pump and radiator using EPDM high-density tubing, which is selected for its low coolant evaporation rate and durability.

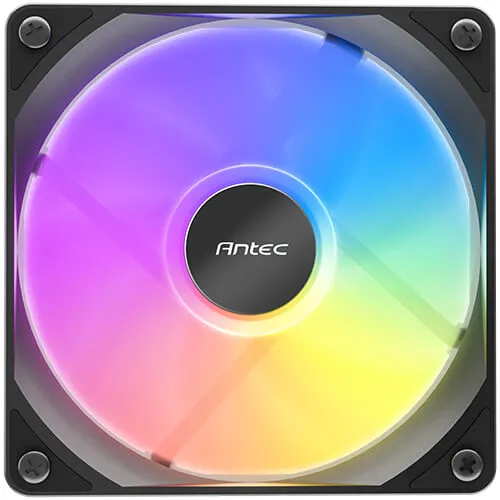

Heat dissipation is handled by three 120mm ARGB fans, which are PWM-controlled to allow for speed adjustments between 800 and 1800 RPM. At their maximum rotational speed, the fans produce an airflow of 71.5 CFM and a static pressure of 2.45 mmH₂O to move air through the radiator fins. The pump operates at a constant speed of 2800 RPM to maintain consistent coolant circulation. This cooler offers broad compatibility with a wide range of Intel and AMD sockets, including LGA 1700/1851 and AM5, for versatile system integration.
Key Features:- Equipped with a 397 x 120 x 27 mm aluminum radiator
- Includes three 120mm PWM fans with hydraulic bearings
- Fan speed range from 800 to 1800 RPM
- Provides a maximum airflow of 71.5 CFM
- Generates a maximum static pressure of 2.45 mmH₂O

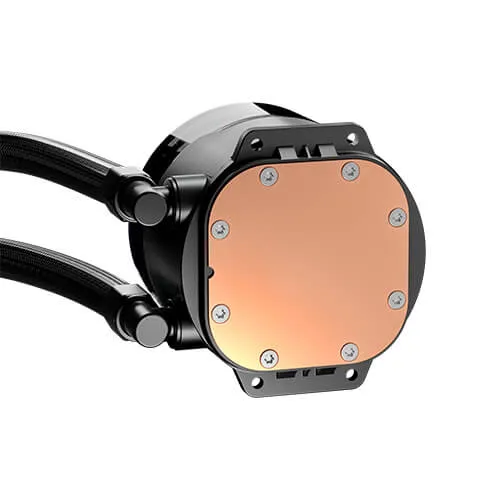

- Features a copper base plate for efficient heat transfer
- Pump operates at a fixed speed of 2800 RPM
- Addressable RGB lighting syncs with compatible motherboards
- Supports Intel LGA 115X/1200/1700/1851/20XX sockets
- Compatible with AMD AM3/AM4/AM5/TR4 sockets
