Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Technical details | |
| Warranty period | 3 year(s) |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Memory | |
| Maximum internal memory | 256 GB |
| Supported memory clock speeds | 4400,4800,5200,5600 MHz |
| Supported memory types | DDR5 |
| Memory channels | Dual-channel |
| Unbuffered memory |  |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 5600 MHz |
| Weight & dimensions | |
| Height | 35 mm |
| Width | 244 mm |
| Depth | 244 mm |
| Networking | |
| Ethernet LAN | |
| LAN controller | Realtek RTL8111H |
| Wi-Fi |  |
| Ethernet interface type | Gigabit Ethernet |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| S/PDIF out connector | |
| CPU fan connector | |
| ATX Power connector (24-pin) | |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | |
| TPM connector | |
| EPS power connector (8-pin) | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Parallel connector | |
| Serial port headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Front panel connector | |
| 12V power connector | |
| RGB LED pin header | |
| Back panel I/O ports | |
| PS/2 ports quantity | 1 |
| Line-in | |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| Number of HDDs supported | 4 |
| RAID support | |
| Number of storage drives supported | 6 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Packaging data | |
| Package weight | 1.21 kg |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package width | 270 mm |
| Packaging content | |
| Bundled software | Norton Internet Security |
| Batteries included | |
| Screws included | |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| ACPI version | 5.0 |
| Clear CMOS jumper | |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Other features | |
| Weight | 720 g |
| Graphics | |
| Maximum resolution | 4096 x 2304 pixels |
| Parallel processing technology support | Not supported |
| DirectX version | 12.0 |
| HDCP | |
| Features | |
| Motherboard chipset | Intel B760 Express |
| Motherboard form factor | Micro ATX |
| Product colour | Brown |
| Audio output channels | 7.1 channels |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Windows operating systems supported | Windows 10, Windows 11 |
| Power source type | ATX |
| Motherboard chipset family | Intel |
| Component for | PC |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| EAN | 4719331864347 |
| Warranty | 1 year |
| Source: Icecat.biz | |

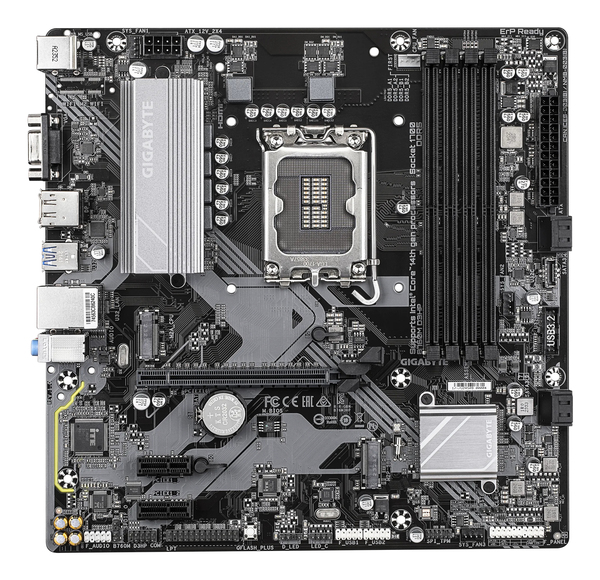

The Gigabyte B760M D3HP is a micro-ATX motherboard designed to provide a robust and reliable foundation for your next PC build. Supporting Intel 14th, 13th, and 12th generation Core, Pentium Gold, and Celeron processors with the LGA1700 socket, this motherboard is well-suited for a variety of uses, from daily productivity to gaming. Its compact size makes it an excellent choice for smaller form factor builds without compromising on essential features and performance.
This motherboard features a hybrid 4+1+1 phases digital VRM solution to ensure stable power delivery to the CPU, allowing for reliable performance under sustained loads. With dual-channel DDR5 memory support, you can take advantage of the latest advancements in memory technology for faster speeds and increased bandwidth. The B760M D3HP also includes ample storage options with dual PCIe 4.0 x4 M.2 connectors for NVMe SSDs, providing lightning-fast data access.
Connectivity is well-covered with front USB-C 5Gb/s, DisplayPort, HDMI, and D-Sub ports, offering flexibility for various display and peripheral connections. The inclusion of Smart Fan 6 technology allows for precise control over your system's cooling, ensuring optimal temperatures and quiet operation. Furthermore, the Q-Flash Plus feature lets you update the BIOS without needing to install a CPU, memory, or graphics card, simplifying the update process.
Key Features- Supports Intel® Core™ 14th/13th/12th Generation Processors
- LGA1700 Socket
- Intel B760 Chipset
- Dual Channel DDR5: 4*DIMMs with XMP Memory Module Support
- Maximum Memory Capacity: Up to 192GB
- 2 x PCIe 4.0 x4 M.2 Connectors
- GbE LAN for Fast Networking
- Front USB-C® 5Gb/s
- HDMI, DisplayPort and D-Sub Ports
- Smart Fan 6 with Multiple Temperature Sensors and Hybrid Fan Headers
- Q-Flash Plus: Update BIOS Without Installing CPU, Memory, and Graphics Card
- Micro-ATX Form Factor
- Gigabyte B760M D3HP Motherboard
- I/O Shield
- SATA Cables
- User Manual
- Driver CD
- M.2 Screws/Standoffs
