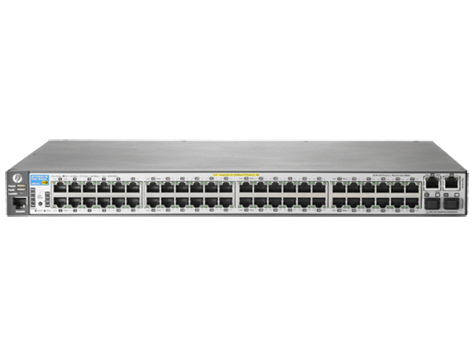

HPE 2620-48-PoE+ Switch - 48x10/100 PoE+ -porttia + 2x10/100/1000T + 2x minigbic paikkoja (PoE Budjetti 382W). .ACL, VLAN-reititys, Enhanced QoS, Ipv6 yhteensop
This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.Ports & interfaces | |
Gigabit Ethernet (copper) ports quantity | 2 |
Console port | RJ-45 |
Installed SFP modules quantity | 2 |
Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Basic switching RJ-45 Ethernet ports quantity | 48 |
SFP module slots quantity | 2 |
Weight & dimensions | |
Weight | 5.23 kg |
Height | 4.39 cm |
Width | 44.3 cm |
Depth | 36.8 cm |
Energy management | |
Power consumption (typical) | 54.9 W |
AC input frequency | 50/60 Hz |
AC input voltage | 100-240 V |
Operational conditions | |
Operating temperature (T-T) | 0 - 55 °C |
Heat dissipation | 325 BTU/h |
Networking | |
Full duplex | |
Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
Flow control support | |
Port mirroring | |
Link aggregation | |
Rate limiting | |
DHCP client | |
DHCP server | |
IGMP snooping | |
Auto MDI/MDI-X | |
Spanning tree protocol | |
VLAN support | |
10G support | |
Auto-sensing | |
Data transmission | |
MAC address table | 16000 entries |
Switching capacity | 17.6 Gbit/s |
Jumbo frames support | |
Latency (10-100 Mbps) | 8.3 µs |
Latency (1 Gbps) | 2.9 µs |
Throughput | 13 Mpps |
Security | |
Access Control List (ACL) | |
SSH/SSL support | |
Management features | |
MIB support | Y |
Switch layer | L2 |
Quality of Service (QoS) support | |
Multicast support | |
Web-based management | |
Switch type | Managed |
Design | |
Rack mounting | |
Form factor | 1U |
Product colour | Grey |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | |
Total Power over Ethernet (PoE) budget | 382 W |
Performance | |
Processor frequency | 400 MHz |
Internal memory | 512 MB |
Flash memory | 4 MB |
Memory type | SDRAM |
Stackable | |
Built-in processor | Freescale PowerPC 8313 |
Packet buffer memory | 2 MB |
EAN | 885631711934 |
Warranty | 1 year |
Source: Icecat.biz |
The HP 2620 Switch Series provides cost-effectiveness, flexibility, and ease of use for enterprise edge, SMB, and branch office access layer deployments. This Fast Ethernet switch has a robust Basic Layer 3 feature set with static and RIP routing, PoE+, ACLs, sFlow, IPv6, and requires no software licensing.
The HP 2620 Switch Series can be managed with the optional HP Intelligent Management Center (IMC) Software for a single view of your entire network.
Features
Flexible, Simple and Cost-effective Fast Ethernet Switches
- The HP 2620 Switch Series provides cost-effectiveness, flexibility, and ease of use for enterprise edge, SMB, and branch office access layer deployments.
- Cost-effective Fast Ethernet switch with four Gigabit Ethernet uplinks (two copper and two SFP) and support for external and redundant power supplies for improved network resiliency and quickly scaling of PoE+ devices.
- Robust Basic Layer 3 feature set includes static and RIP routing, PoE+, ACLs, sFlow, IPv6, and requires no software licensing.
Power at the Edge
- The HP 2620 Switch Series is designed with up to 370 W of internal PoE+ power and easily scales to 740 Watts with simple connection to EPS/RPS. A model with 128 W is ideal when you only need to power several PoE+ devices.
- Optional redundant power with external RPS/EPS enhances network resiliency. Highly rated, 80 PLUS Silver Grade Power Supplies on the HP 2620-24-PoE+ and HP 2620-48-PoE+ switches conserve energy resources.
- Increase performance with selectable queue configurations and associated memory buffering that meet your network application performance requirements.
Security and Quality of Service (QoS) You Can Rely on
- The HP 2620 Switch Series includes security and (QoS) features to build a network that meets ever-changing corporate policies and compliances and helps protect your data from both inside and outside attacks.
- The HP 2620 Switch Series supports flexible authentication options include standards based security protocols such Local MAC, 802.1X, and MAC and Web for greater, policy-driven application security.
- Traffic prioritization (IEEE 802.1p) allows real-time traffic classification into eight priority levels that are mapped to eight queues.
- Powerful multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.
- Defend your IPv6 network with DHCPv6 Protection.
Single View of the Network
- The HP 2620 Switch Series can be seamlessly managed with the optional HP Intelligent Management Center (IMC) Software to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
- TR-069 delivers zero touch deployment for devices with dynamic IP addresses and on private networks.
