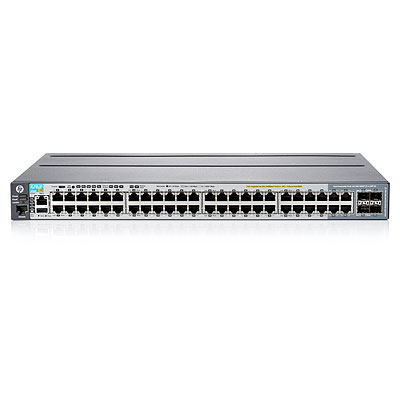

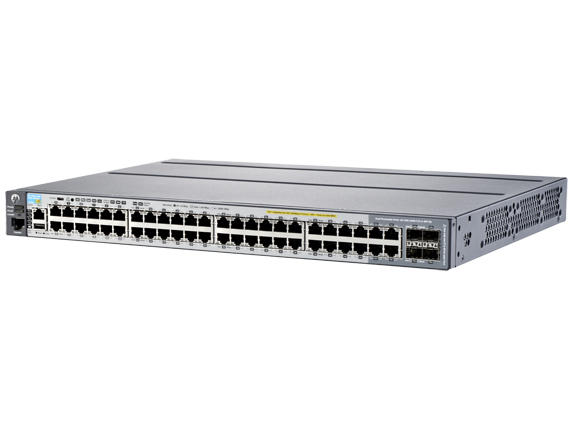

Aruba 2920-48G POE+ Switch 48x 10/100/1000T PoE+ ports with 4 SFP Combo ports (PoE budget700 W). One 1050 W 100-240VAC (J9737A) removable power supply. Two empt

Manufacturer: HEWLETT-PACKARD
ID: J9836A#ABB
Product unavailable
This product is end of life or currently not available.

Key Specifications

Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Ports & interfaces
Combo SFP ports quantity4
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity48
Weight & dimensions
Weight5.83 kg
Height43.9 mm
Width442.5 mm
Depth336 mm
Energy management
Power consumption (typical)881W
Input voltage110 - 240 VAC
Operational conditions
Operating altitude3 km
Operating relative humidity (H-H)15 to 95 %
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 55 °C
Storage relative humidity (H-H)15 to 95 %
Heat dissipation482 BTU/h
Data transmission
MAC address table16000 entries
Switching capacity176 Gbit/s
Throughput130.9 Mpps
Management features
Switch layerL3
Quality of Service (QoS) supportcheckmark
Other features
Dimensions (WxDxH)442.5 x 336 x 43.9 mm
Electromagnetic immunityEN 55024, CISPR 24; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-11; IEC 61000-3-2; IEC 61000-3-3
I/O ports44 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 4 RJ-45 dual-personality 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); 2 module slots; 1 stacking module slot; 1 dual-personality (RJ-45 or USB micro-B); 1 USB 1.1; 1 RJ-45 out-of-band management port; Included
Latency100 Mb Latency: < 9.0 µs; 1000 Mb Latency: < 3.2 µs; 10 Gb/s Latency: < 3.2 µs
Power supply type1 x J9737A
Acoustic pressure emissionsPower: -53, Pressure: -38.3 dB
Management platformHP PCM+; IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; out-of-band management (RJ-45 Ethernet); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; out-of-band management (serial RS-232C or Micro USB)
Memory and processorTri Core ARM1176 @ 625 MHz; 512 MB SDRAM; packet buffer size: 11.25 MB (6.75 MB dynamic egress + 4.5 MB ingress); 1 GB flash
Power requirements740 W of PoE+ power is available using the internal default power supply.
Input frequency50 - 60 Hz
Power supply slots open1
Design
SafetyCE Labeled; EN 60825-1 Safety of Laser Products-Part 1; FCC Part 15, Subpart B; GOST; EU RoHS Compliant; EN 55022 Class A; EN 55024: 1998; C-Tick; ICES-003, Class A; VCCI Class A; IEC 60950-1:Second Edition; IEC 60825-1; EN62479:2010; CSA C22.2 No. 60950-1-07 2nd Edition; EN 60950-1:2006+A11:2009+A1:2010+A12:2011; IEC 60950-1 (ed.2): am1
Electromagnetic compatibilityFCC part 15 Class A; VCCI Class A; EN 55022/CISPR 22 Class A
Product colourGrey
Power over Ethernet (PoE)
Power over Ethernet (PoE)checkmark
Total Power over Ethernet (PoE) budget740 W
Performance
Processor frequency625 MHz
Internal memory512 MB
Flash memory1000 MB
Memory typeSDRAM
Stackablecheckmark
Expansion module supportcheckmark
Built-in processorTri Core ARM1176
Packet buffer memory11.25 MB
EAN0887758353585
Warranty1 year
Source: Icecat.biz
The HP 2920 Switch Series provides security, scalability, and ease of use for enterprise edge, SMB and branch office, access-layer deployments. A powerful HP Networking ASIC delivers low latency, more packet buffering, and adaptive power consumption.
This robust Basic Layer 3 switch series supports modular stacking, 10GbE, RIP routing, PoE+, ACLs, sFlow, and IPv6. The HP 2920 Switch Series can be managed with the optional HP Intelligent Management Center (IMC) software for a single view of your entire network and is ready for the Software-defined Network (SDN) with OpenFlow support.

Features
Flexible, Scalable and SDN Ready Access Layer Switches
The HP 2920 Switch Series provides security, scalability, and ease of use for enterprise edge, SMB, and branch office, access-layer deployments.
Cost-effective, pay-as-you-grow modular stacking support for up to four 10GBASE-T (or SFP+) links and upgradeable power supplies allow your network to quickly scale when needed.
Robust Basic Layer 3 feature set includes static and RIP routing, PoE+, ACLs, sFlow, IPv6, and requires no software licensing.
Software-defined Network (SDN) enabled with OpenFlow support for your network.

High Performance and Power at the Edge
The HP 2920 Switch Series is designed with a powerful HP Networking ASIC, providing low latency, increased packet buffering, and adaptive power consumption so the network can support the media-rich, bandwidth-intensive applications your business demands.
Increase performance with selectable queue configurations and associated memory buffering that meet your network application requirements.
With up to 740 W of internal PoE+ power, the 2920 Switch Series can easily scale to 1440 Watts with a simple connection to an external power supply (EPS) or redundant power supply (RPS).
Plug and play stacking with automated failover enhances network resiliency and RPS support delivers power redundancy.
Efficient 80 PLUS Silver Grade Power Supplies, Energy Efficient Ethernet, and LLDP-MED conserve energy resources. Removable power supplies reduce downtime during upgrades and servicing.

Security and Quality of Service (QoS)You Can Rely on
The HP 2920 Switch Series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances and help protect your data from both inside and outside attacks.
Flexible authentication options include standards based security protocols such as 802.1X, and MAC and Web for greater, policy-driven application security.
Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.

Simplify with a Single View of the Network
The HP 2920 Switch Series can be seamlessly managed with the optional HP Intelligent Management Center (IMC) Software to provide end-to-end network transparency with a consistent network experience through comprehensive configuration, compliance, and policy management.
RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.
