| Technical details | |
| Device type | SSD |
| Weight & dimensions | |
| Weight | 11.2 g |
| Height | 3.7 mm |
| Width | 80 mm |
| Depth | 22 mm |
| Energy management | |
| Power consumption (sleep) | 0.14 W |
| Power consumption (max) | 0.33 W |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Vibration resistance | 20 G |
| Operating shock | 1500 G |
| Other features | |
| Product colour | Black |
| Cooling type | Passive |
| Performance | |
| Drive capacity | 256 GB |
| Features | |
| Drive capacity | 256 GB |
| Interface | PCI Express 3.0 |
| Certification | RoHS, CE, FCC, BSMI, VCCI, KC |
| Mean time between failures (MTBF) | 2000000 h |
| Memory type | TLC |
| ECC |  |
| Read speed | 2100 MB/s |
| Write speed | 1500 MB/s |
| Protection features | Shock resistant |
| Random write (4KB) | 180000 IOPS |
| Random read (4KB) | 190000 IOPS |
| Component for | PC/notebook |
| TBW rating | 150 |
| SSD form factor | M.2 |
| NVMe | |
| NVMe version | 1.3 |
| Low-density parity-check (LDPC) | |
| NAND flash type | TLC (Triple Level Cell) |
| Sequential read speed (CDM) | 2100 MB/s |
| Sequential write speed (CDM) | 1200 MB/s |
| Sequential write speed (AS SSD) | 1200 MB/s |
| Sequential read speed (AS SSD) | 1800 MB/s |
| Sequential read speed (ATTO) | 2100 MB/s |
| Sequential write speed (ATTO) | 1200 MB/s |
| EAN | 4713218469250 |
| Warranty | 5 years |

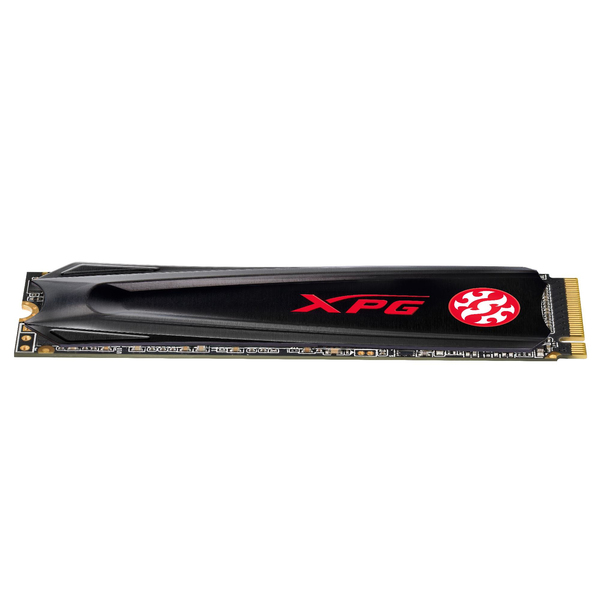

Boot, load, and transfer faster with the XPG GAMMIX S5 PCIe Gen3x4 M.2 2280 solid state drive (SSD).
With support for NVMe 1.3 and equipped with 3D NAND Flash, it offers up to 4 times faster performance than SATA SSDs and up to 1TB of capacity. What’s more, the GAMMIX S5 sports excellent heat dissipation capability with a built-in heatsink that can lower temperatures by up to 10 °C
Ultra-fast PCIe Gen3x4 interface:
R/W speed up to 2100/1500MB/s
- NVMe 1.3 support
- 3D NAND Flash for higher capacity and durability
- Unique heatsink design – makes SSD 10°C cooler
- Advanced LDPC ECC Technology
- HMB (Host Memory Buffer) and SLC Caching
- Compact M.2 2280 form factor – ideal for high-end desktops
