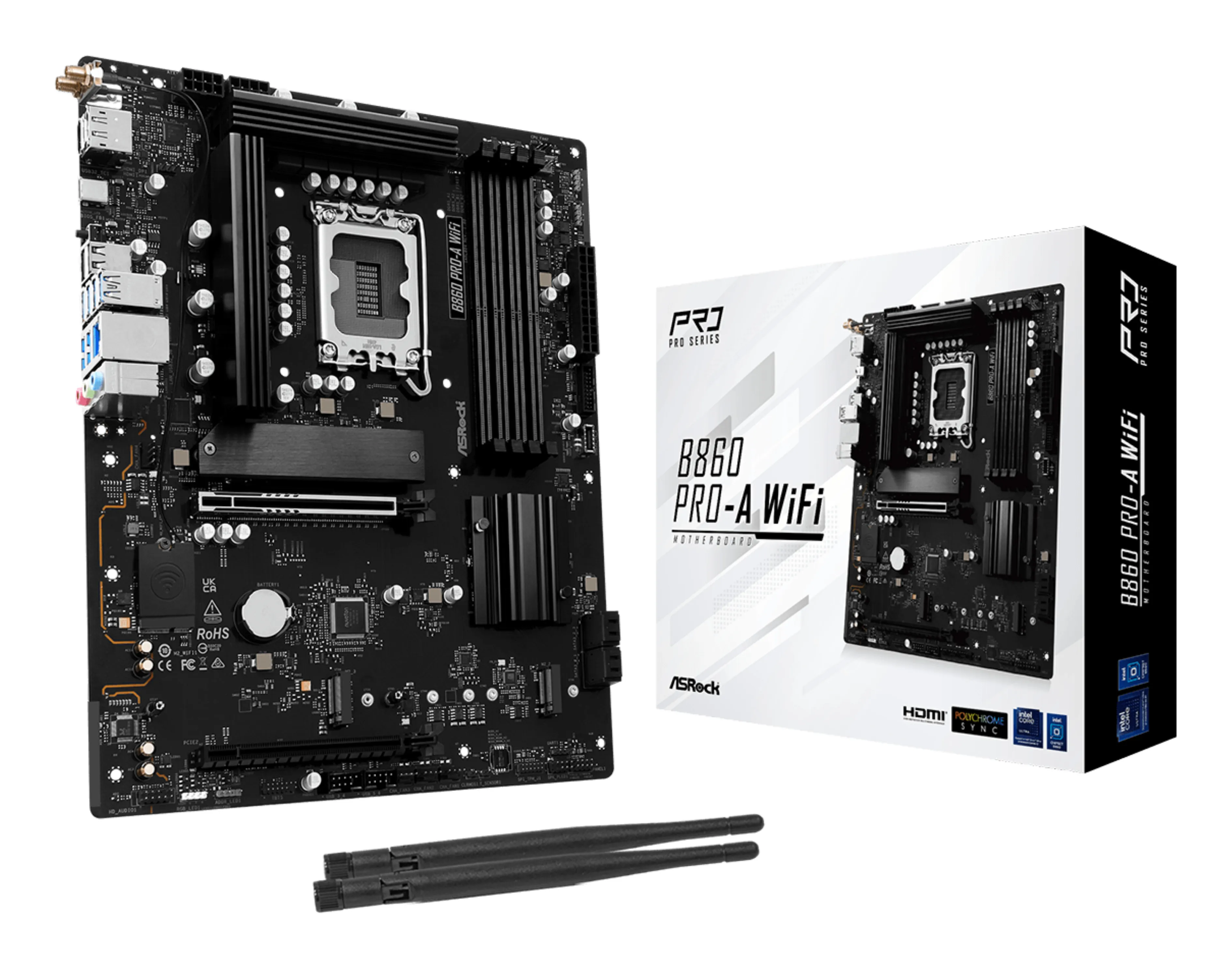

ASRock B860 Pro-A WiFi LGA1851 ATX Motherboard

The ASRock B860 Pro-A WiFi is an ATX motherboard built on the B860 chipset for Intel's LGA1851 socket. It is designed to accommodate Intel Core Ultra Series 2 processors, providing a stable foundation for modern PC builds. The board incorporates a 10+1+1 power phase design with Dr.MOS components to ensure consistent and efficient power delivery to the CPU, which is beneficial for system stability under load. It supports high-speed dual-channel DDR5 memory, allowing for significant performance in memory-intensive applications and multitasking scenarios.

For expansion and connectivity, this motherboard features a primary PCIe 5.0 slot, which provides maximum bandwidth for current-generation graphics cards. Storage capabilities are addressed with multiple M.2 slots, including a PCIe Gen5 interface for the fastest available NVMe solid-state drives. Networking is handled by an integrated 2.5 GbE LAN port for high-speed wired connections and a Wi-Fi 6E module for low-latency wireless networking. Onboard features such as BIOS Flashback and an Auto Driver Installer are included to simplify the setup and maintenance process.

• Supports Intel Core Ultra Series 2 processors via the LGA1851 socket
• Features a standard ATX form factor for broad case compatibility
• Provides four DDR5 DIMM slots for up to 256 GB of dual-channel memory
• Accommodates overclocked memory speeds reaching 8666+ MHz
• Equipped with a primary PCIe 5.0 x16 slot for graphics cards
• Includes three M.2 slots for NVMe SSDs, with one supporting PCIe 5.0
• Offers four SATA 6Gb/s ports with RAID 0, 1, 5, and 10 support
• Integrates 2.5 Gigabit LAN, Wi-Fi 6E, and Bluetooth 5.3 networking
• Utilizes a Realtek ALC897 7.1 channel audio codec
• Features HDMI 2.1 and DisplayPort 1.4 for video output
• Provides a comprehensive selection of USB Type-A and Type-C ports
• Includes user-friendly features like a Clear CMOS button and BIOS Flashback
