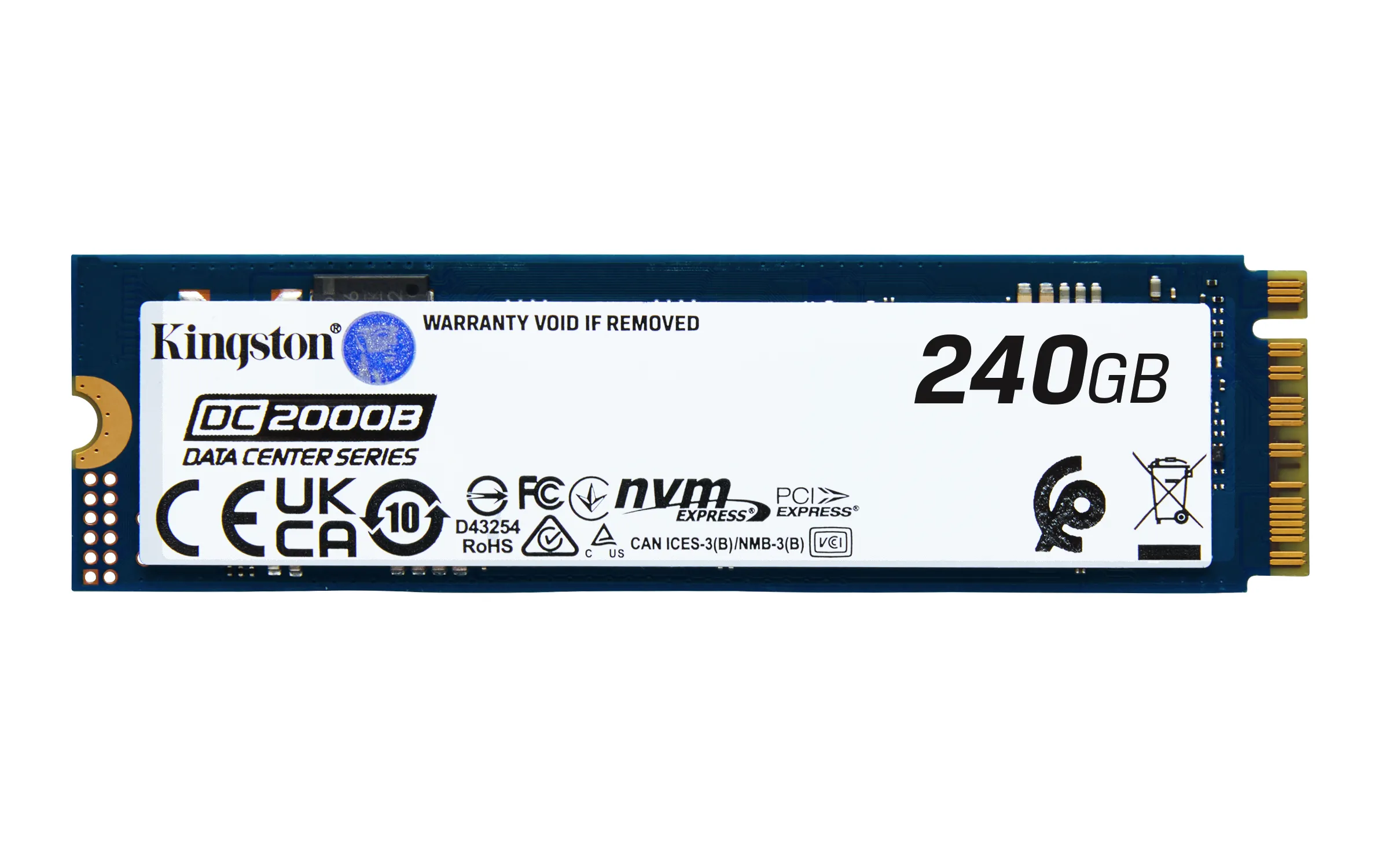

Kingston 240G DC2000B PCIe 4.0 M.2 2280 Enterprise SSD (Non-Heatsink) 240GB, PCIe 4.0, M.2 - SSD
Manufacturer: KINGSTON
ID: SEDC2000BYM8/240G
11290€
Show VAT 0%
Show VAT 25,5%
Multitronic Vaasa
Multitronic Pietarsaari
Multitronic Jyväskylä
Multitronic Lappeenranta
Multitronic Mariehamn
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Manuals
| Technical details | |
| Device type | SSD |
| Weight & dimensions | |
| Weight | 9 g |
| Height | 3.5 mm |
| Width | 22 mm |
| Depth | 80 mm |
| Energy management | |
| Power consumption (read) | 3.01 W |
| Power consumption (write) | 4.09 W |
| Average power consumption (read) | 2.97 W |
| Average power consumption (write) | 4.02 W |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Non-operating vibration | 20 G |
| Packaging data | |
| Package weight | 32.51 g |
| Package depth | 8.38 mm |
| Package height | 184.2 mm |
| Package width | 129.5 mm |
| Features | |
| Drive capacity | 240 GB |
| Interface | PCI Express 4.0 |
| Mean time between failures (MTBF) | 2000000 h |
| Memory type | 3D TLC |
| Read speed | 4500 MB/s |
| Write speed | 400 MB/s |
| S.M.A.R.T. support |  |
| Random write (4KB) | 18000 IOPS |
| Random read (4KB) | 260000 IOPS |
| Component for | Server |
| Read latency | 70 µs |
| Write latency | 53 µs |
| PCI Express interface data lanes | x4 |
| TBW rating | 175 |
| SSD form factor | M.2 |
| NVMe | |
| H/W PLP function | |
| Drive writes per day (DWPD) | 0.4 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Logistics data | |
| Country of origin | Taiwan |
| Master (outer) case height | 69.8 mm |
| Master (outer) case width | 135.9 mm |
| Master (outer) case gross weight | 403.12 g |
| Master (outer) case length | 203.2 mm |
| Products per master (outer) case | 10 pc(s) |
| EAN | 0740617350364 |
| Warranty | 5 years |
| Source: Icecat.biz | |
The Kingston DC2000B is a high-performance, enterprise-class SSD designed for demanding server applications and data centers. Utilizing the latest PCIe 4.0 interface, this M.2 2280 NVMe SSD delivers exceptional speed and low latency, making it an ideal boot drive or caching solution for high-volume rack-mount servers. Its compact form factor and robust design ensure compatibility and reliability in space-constrained environments, while its optimized firmware provides consistent performance under heavy workloads.
Built with 3D TLC NAND, the DC2000B offers a balance of performance, endurance, and cost-effectiveness. It incorporates on-board power loss protection to safeguard against data corruption in the event of unexpected power outages. With impressive sequential read speeds up to 4500 MB/s and write speeds up to 400 MB/s, this SSD significantly improves system responsiveness and reduces application loading times. The DC2000B's low latency and IOPS consistency are key design criteria that meet the rigorous demands of modern data centers.
Key Features- Capacity: 240GB
- Form Factor: M.2 2280
- Interface: PCIe 4.0 x4 NVMe
- Sequential Read Speed: Up to 4500 MB/s
- Sequential Write Speed: Up to 400 MB/s
- Random Read IOPS (4K): Up to 260000
- Random Write IOPS (4K): Up to 18000
- NAND Type: 3D TLC
- Endurance (TBW): 175 TBW
- MTBF: 2 million hours
- Power Loss Protection: Yes
- Hardware Encryption: Not specified
- Kingston 240GB DC2000B PCIe 4.0 M.2 2280 Enterprise SSD
- Setup guide or manual
